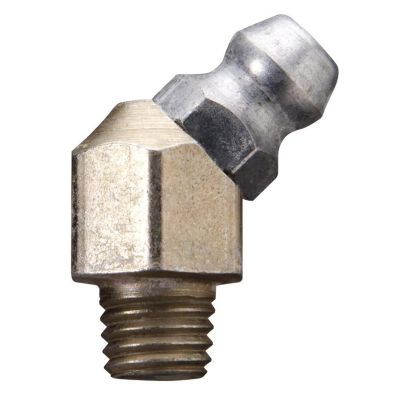

Alemite Thread Forming Fitting, 45 Degrees
Item ID:
ALM3053-B
Alemite Thread Forming Fitting, 45 Degrees
Features and Benefits:
- Trivalent zinc plating for durability and resistance to corrosion
- exceeds 72-hour salt spray test
- Angle of 45 degrees for easier access to fitting
- 3/8" hex size
- 1/4"-28 special taper threading for an untapped recommended hole size of .230" to .235", creating a leak-proof seal
"ALEMITE" THREAD FORMING FITTINGThread-forming fittings have special tapered drive threads to reshape the material in an untapped hole to provide a leakproof seal. They are most effectively installed by spinning into the untapped hole, but may be driven straight into the untapped hole. Thread-forming fittings can be replaced by any standard threaded fitting or by another thread-forming fitting.Highlights: Type: 45�Thread: 1/4"-28 Spl. TaperHex Size: 3/8"230 - .235 Hole size recommended.Threads provide strong seal Exceeds 72-hour salt-spray test Maximum pressure: 8,000 psi
| Weight | 0.770000 |
|---|---|
| Brand | Alemite |
| UPC | 098468100943 |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.Call vendor for warranty
