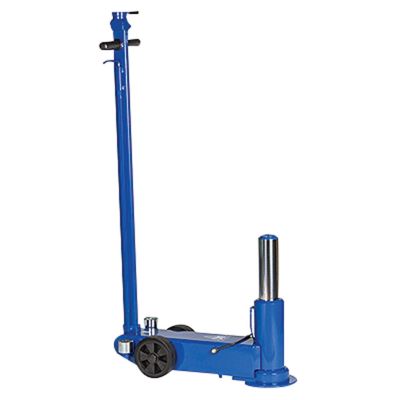

AME Air Hydraulic Jack, 25 Ton
Item ID:
AMN25-1H
AME Air Hydraulic Jack, 25 Ton
Features and Benefits:
- Single stage air hydraulic jack for agricultural and contractors’ machinery, trailers and other high clearance applications.
- Minimum height of 14.21"
- Maximum height of 24.06", the F250 (optional) extension offers a total extended height of 33.90 in
- Hard chromium plated piston rod for long life.
- Built-in safety overload valve.
- Hand-operated dead-man’s control for optimum safety whilst lifting and lowering.
- 25-1HTH model with telescopic handle increasing the reach under the vehicle to 212 mm ensuring safe and easy operation.
- With 2 extensions (1.97/3.94")
- Capacity: 55,000 lbs
- Min Height: 14.21"
- Max Height: 24.06 "
- Frame Length: 32.17"
- Handle Length: 53.35"
- Width: 9.06"
- Width (with wheels): 12.28"
- Air Supply: 130-174 psi
- Air Consumption: 350 I/min
- Weight: 157 lbs
| Weight | 157.000000 |
|---|---|
| Brand | AME |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
