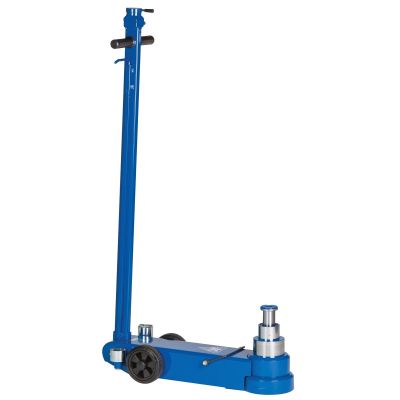

AME Air Hydraulic Jack 50/25/10 Ton 3 Stage
Item ID:
AMN50-3
AME Air Hydraulic Jack 50/25/10 Ton 3 Stage
Features and benefits:
- 3-stage air hydraulic jack for low buses and other low clearance vehicles.
- Minimum height of only 5.94 in combined with a high lifting capacity.
- Telescopic cylinders ensure an excellent maximum lift together with a low closed height.
- Designed for heavy-duty, intensive commercial use.
- Hand-operated dead-man’s control for optimum safety whilst lifting and lowering.
- 50-3TH model with telescopic handle increasing the reach under the vehicle to 85.24 in ensuring safe and easy operation.
- With 2 extensions (1.97/3.94 in)
Capacity: 110,000/55,000/22,000 lbs
Min Height: 5.94 inches
Max Height: 8.31/10.39/13.11 inches
Frame Length: 31.89 inches
Handle Length: 53.35 inches
Width: 7.95 inches
Width (with wheels): 12.13 inches
Air Supply: 130-174 psi
Air Consumption: 350 I/min
Weight: 148 lbs
| Weight | 0.000000 |
|---|---|
| Brand | AME |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
