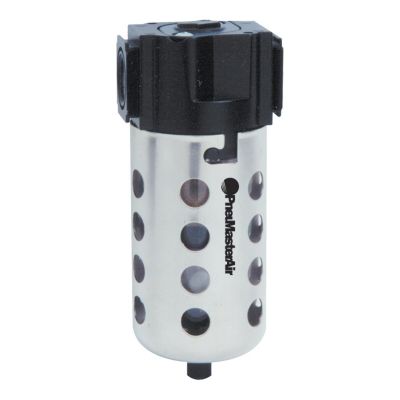

Arrow Pneumatic PneuMasterAir 1/2"NPT Filter with Poly Bowl
Arrow Pneumatic PneuMasterAir 1/2"NPT Filter with Poly Bowl
Features and Benefits:
- Cleanable, reusable sintered bronze element
- 6 oz. polycarbonate bowl with bowl guard
- Manual drain
- Unit is rated at 175 psig and 100 SCFM
- In line or modular installation
Full Specifications
| UPC |
094922963208 |
| Weight |
1.100000 |
| Brand |
Arrow Pneumatic |
| Style |
System |
| Air Inlet Size |
1/2" NPT |
| Drain Type |
Manual |
| Filter body Material |
Bronze |
| Gauge Included |
No Guage |
| Maximum Operating Temeprature |
125 Degrees |
| Maximum Pressure in PSI |
100 PSI |
| Bowl Capacity |
5 oz. |
| Bowl Material |
plastic |
| Filtration micron size |
40/5/3 Microns |
| Number Of Stages |
3 stages |
| Flow in CFM |
100 |
| Item |
Air Filter |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.
1 yr warranty on material and workmanship
