Features and Benefits:

• ALI Certified Lift
• 12,000 lb. Capacity
• Commercial Grade
• Extra Tall & Extra Wide
• Adjustable Height 165? (13? 9?) or 177? (14? 9?)
• 3-Stage Symmetric Arms
• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Thick Rubber Door Guards on Carriage
• Single Point Lock Releases
• Direct-Drive Cylinders
• Powder Coat Finish
• Free 8 Piece Truck Adapter Set
• Mounting Hardware Included
• Standard with Premium ALLY Power unit
• Shipping Weight: 2,425 lbs
• 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
• This part number WILL CALL ONLY

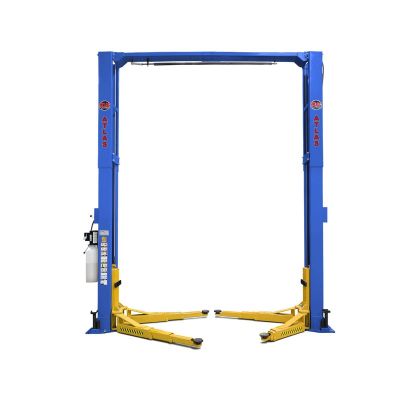

The Atlas® Platinum PVL12 is an ALI Certified two post commercial grade 12,000 lb. capacity Heavy-Duty lift designed with the professional shop in mind. The low pad height allows this lift to accommodate both long wheel base trucks and passenger cars. The extra distance between the columns accommodates wider vehicles or vehicles with wide rearview mirrors. The extra height is perfect for tall vans and box trucks.

The Platinum PVL12 is also ALI certified and backed by one of the industry�s best warranties for an added peace of mind.

The Atlas® Platinum PVL12 features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

• Capacity 12,000 LB.
• Overall Height 165" (13� 9”) or 177” (14� 9”)
• Overall Floor Width 150 3/8" (12� 6 3/8”)
• Outside Column to Outside Column 139 1/8" (11� 7 1/8")
• Maximum Lift Height (Without Adapters) 73 5/8"
• Maximum Lift Height (With Adapters) 85 1/2"
• Minimum Arm Height 4 1/2"
• Inside Column 122 5/8” (10� 2 5/8”)
• Drive Thru 109 5/8" (9� 1 5/8”)
• Column Size 7 1/2" x 14 1/2"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 20 1/2"
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,425 LBS.
• Adapter Heights 4 Each 4.5”, 8.5”
• Arm Hole/Adapter Peg Size 1.57”
