PLATINUM ALI CERTIFIED BASEPLATE 2 POST LIFT

Item ID: ATEAP-PVL9BP-FPD

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

PLATINUM ALI CERTIFIED BASEPLATE 2 POST LIFT

Item ID:
ATEAP-PVL9BP-FPD
As low as
$1.00
PLATINUM ALI CERTIFIED BASEPLATE 2 POST LIFT

Features and Benefits:

  • ALI Certified
  • 9,000 lb. Capacity
  • Commercial Grade
  • 3-Stage Symmetric Arms
  • Base Plate, Open-Top Design
  • Designed For Low Ceiling Clearance ‐ 9' 3 1/8" Columns
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System (SLS)
  • Automatic Arm Restraints
  • Dual Point Lock Release
  • Includes Double Screw-Up Adapters
  • Free 8 Piece Truck Adapter Set
  • Standard with Premium ALLY Power unit
  • Mounting Hardware Included
  • Shipping Weight: 1,700 lbs.
  • 5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
  • This part number Freight Prepaid

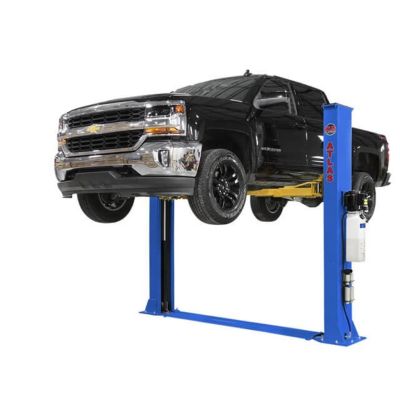

The Atlas® Platinum PVL9BP is a 9000 LB capacity, base-plate two-post lift designed for professional service centers. The open-top design of this lift makes it ideal for garages with low ceilings or for customers who don't want to worry about the limitations of a top beam. The total column height is 111 1/8" (9' 3 1/8"). The Atlas® Platinum PVL9BP can lift a range of the most common vehicles on the market, both foreign and domestic, while also having the capacity to handle both full-size pickups and commercial vehicles.

The Atlas® Platinum PVL9BP is ALI Certified and backed by one of the Industry's best warranties for an added piece of mind.

The Atlas® Platinum PVL9BP features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.



Atlas® Platinum PVL9BP Specifications

  • Capacity 9,000 LB.
  • Overall Height 111 1/8" (9' 3 1/8")
  • Overall Floor Width 138 5/8" (11' 6 5/8")
  • Outside Column to Outside Column 127 1/2" (10' 7 1/2')
  • Maximum Lift Height (Without Adapters) 74 3/4"
  • Maximum Lift Height (With Adapters) 83 3/4""
  • Minimum Arm Height 4 1/2"
  • Inside Column 111 3/8" (9' 3 3/8")
  • Drive Thru 97 5/8" (8' 1 5/8")
  • Column Size 7 5/8" x 14 1/4"
  • Column Thickness of Steel 6mm
  • Base Of Lift 19 1/2" x 20 1/2"
  • Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
  • Shipping Weight 1,700 LBS.
  • Adapter Heights 4 Each 3", 6"
  • Arm Hole/Adapter Peg Size 2"
  • Requires a minimum of 6" of concrete with a 3000 psi. rating
Full Specifications
Weight 1700.000000
Brand Atlas Automotive Equipment
UPC 810524027700

Warranty Info:

5 yr warranty on material and workmanship
