Features and Benefits:

• ALI Certified APEX9
• 9,000 lb. Capacity
• Free Standing/Portable Design
• Heavy Duty
• Extra Tall, Extra Wide & Extra Long
• Powder Coat Finish
• Diamond Plated Runways
• Single Point Lock Release
• Lock Ladder Design
• Double Lock Safety System
• Steel Approach Ramps Included
• Steel Jack Tray Included
• Four Plastic Drip Trays Included
• Two Wheel Chocks Included
• Caster Kit with Polyurethane wheels Included
• Anchor Bolts Optional (Sold Separately)
• 110volt Electric Operation (Requires 30amp Breaker)
• Shipping Weight: 2,975 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
• 2 X RJ45A Rolling Bridge Jacks
• 4,500 lb Capacity
• Air/Hydraulic operation (External Air Supply not Included)
• Height Adapters Included
• Arm Adjustment: 39 1/2" to 64 3/4"
• Max Height w/ Adapters: 18 1/2"
• Min Height above Runway (May Vary by Lift): 3 3/4"
• Two Locking Heights: 7 3/8" & 10 1/2"
• Fits Lifts with 35" to 54 1/2" Between Runways
• 1 yr Parts Only Warranty

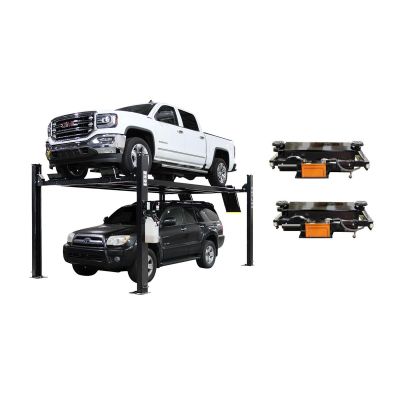

The Atlas® APEX9 ALI certified 4 post lift is a heavy duty hobbyist and commercial grade lift and is a true 9000 LB lift. The APEX9 is extra long and allows the lift to handle some of the longest wheel base vehicles out there. The APEX9 is also extra wide allowing even Diesel Duallys to be driven onto the runways. The APEX9 also features extra lift height so everything from Smart Cars® to a Dually can be parked both below and on the runways.The Atlas® APEX9 is even heavier than the Garage PRO9000 making it one of the heaviest portable hobbyist lifts on the market. The APEX9 has many of the features of the Atlas® Garage PRO9000 lift including free plastic drip trays, a free steel jack tray, and a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. The commercial grade features and ALI Certification of the Atlas® APEX9 make this lift the perfect choice for automotive service centers or the "Mr. Homeowner" that needs a PORTABLE professional four post lift.

This combo package also includes two of the the new Atlas® RJ45AA rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
