Features and Benefits:

• Stand Alone/Stationary Wheel Lift
• Air Operated (external air supply required)
• Air Regulator Included
• Cone Hangers Included
• Weight Capacity 150 lbs.
• Great for all brands and models of Wheel Balancers

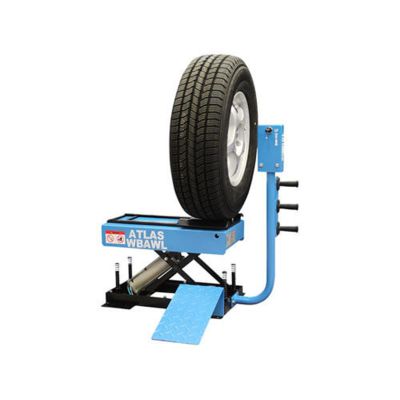

The Atlas® WBAWL is a pneumatic wheel lift designed to raise and support (up to 150 lb.) tire/wheel combinations. The WBAWL�s compact design allows it to fit under most wheel balancers.The operator rolls the tire onto the lowered platform slide, moves the conveniently located toggle switch and raises the wheel/tire to the correct mounting height. The platform slide allows the wheel to be moved onto the balancer shaft and then the mounting cones and locking nut are installed.Many of the heavy custom wheels currenlty on the market need the wheel to be mounted (to the balancer) through the lug bolt pattern. It is almost impossible for one person to hold the heavy wheel and install the universal lug bolt adapter without risking damage to the rim or the balancer shaft. With the Atlas® WBAWL the installation on that adapter is made much easier.

The Atlas® WBAWL has several great features including three non-mar cone hangers that store the cones or quick release nut nearby. The WBAWL has four base mounted detent springs provide a controlled descent leveling speed. Finally, the base mounted air regulator helps to maintain the correct pressure to the pneumatic cylinder.

Atlas® WBAWL Specifications

• Capacity: 150 lbs
• Max Lifting Height: 20 1/2"
• Minimum Lifting Height: 8"
• Air Requirement: 100 PSI
• Shipping Weight: 100 lbs
