Features and Benefits:

• 6,000 lb. Capacity
• Open Center Design
• Commercial Grade Quality
• 4 Non-Slip Rubber Pads
• Drive Over Ramps
• Great for Tire and Brake Work
• Heavy Duty Rubber Lifting Blocks Included
• Mounting Hardware Included
• Air-Operated Single Point Lock Release (External Air Supply Required)
• 110volt Electric Operation
• 2 Year Structural Warranty/1 Year Hydraulic Warranty
• Shipping Weight: 850 lbs.
• This part number FREIGHT PREPAID

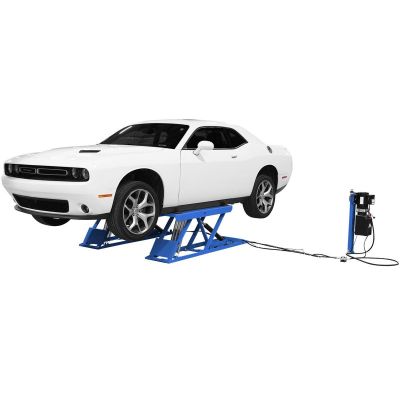

The Atlas® 6PL 6,000 lb. capacity low rise lift is ideal for quick service work situations involving tire and brake work.The open center design of the 6PL low rise lift also allows easier access to the underside of any vehicle being lifted. The 6PL comes with non-slip pads that provide a great contact surface and a set of four high density rubber blocks that help protect lifting points on most vehicles.

Simply drive the car over the Atlas® 6PL and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button the power unit and lift the vehicle to the desired height. Depress the "dump valve lever" on the power unit and lower the lift to the closest locking position.

Due to the horizontal cylinder configuration of the 6PL it is important to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle's lifting points.

• Capacity: 6000 lbs
• Max Lift Height: 26"
• Minimum Lift Height: 4 1/2"
• Platform Dimensions: 53" x 18""
• Overall Width: 71" (Platforms can be installed closer together if desired)
• Air Requirement: 85-120 PSI
• Motor/Electrical Requirement: 110volt
• Oil Requirement: 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 850 lbs
