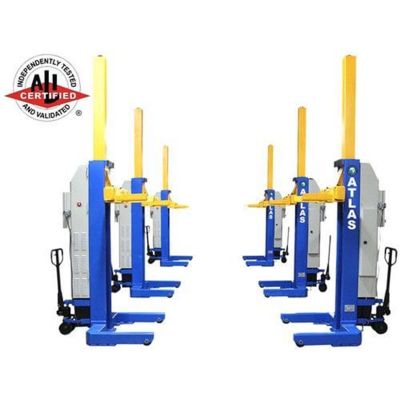

The Maxima mobile column lift system is an ALI certified solution designed for safely lifting heavy duty trucks and commercial vehicles in shops with limited space. Each column is powered by a 2.2 kW 24V DC motor with dual rechargeable batteries, allowing full cordless operation and maximum mobility. Built in hydraulic pallet jack systems make positioning easy, while synchronized electronic controls ensure smooth, level lifting across all columns. With adjustable forks that fit tire diameters from 19 inches to 44 inches, this system delivers flexibility, safety, and reliable performance for a wide range of vehicle sizes.

Features and Benefits:

• ALI certified for safety and performance standards
• Simultaneous operation of all columns with electronic synchronization
• LCD screen displays exact lifting height for each column
• Double safety system with hydraulic flow control and mechanical locks
• Portable column design with built in hydraulic pallet jack system for easy movement
• Adjustable forks accommodate tire diameters from 19 inches to 44 inches
• Emergency stop button located on every column
• Six 32 column connecting cables included
• Battery powered operation delivers 10 to 20 lifts per charge depending on load
• Rechargeable using 110V single phase power
• Can be used indoors or outdoors on level concrete surfaces at least 6 inches thick
• Optional tripod support stands available for wheel service applications

Specifications:

• Capacity per column: 16,500 lbs
• Motor: 2.2 kW 24V DC with dual batteries per column
• Maximum lifting height: 67 inches
• Overall height: 145 inches
• Resting height: 88 1/2 inches
• Width: 43 1/2 inches
• Length: 55 1/2 inches
• Column width: 13 1/4 inches
• Maximum tire diameter: 44 inches
• Minimum tire diameter: 19 inches
• Weight per column: 1,600 lbs
• Shipping Weight (For Six Columns): 9,600 lbs
• Warranty: 2 year limited
