Features and Benefits:

• "Plus Package" Included: Aftercooler, LowOil Shut Off, Auto-Tank Drain
• 2-Stage Pump
• Commercial Grade
• 10HP Motor
• 120 Gallon Horizontal Tank (Made in the USA)
• Air Output 145-175 PSI
• Extremely Quiet Operation
• Magnetic Starter Included, Controls ElectricInput Adding To Longevity Of The Unit
• Set of Vibro-Isolation Pads Included
• Hands Free Tank Drain Extension
• Compressor Oil Drain Extension Tube
• Finned Tank Inlet Tube For Reduced TankWater Accumulation
• Heavy Duty Metal Belt Guard
• Continuous Run Option Included, Takes OffStart-Stop Surge From Motor
• 1 Year Parts Only Warranty
• Motor Running: 10 Horsepower
• Delivered-CFM 90 PSI: 37
• Delivered-CFM 175 PSI: 35
• Pressure Setting: 145-175 PSI
• Tank Capacity: 120 Gallons (Horizontal)
• Air Outlet Size: 3/4" NPT
• Overall Dimensions: L 72" x W 32" x H 52"
• Compressor Pump: 3 Cylinder, 2-Stage
• Shipping Weight: 1000 lbs.
• 220volt, 1PH, 60 amp breaker required, 6 gaugewire recommended (70ft max from breaker)

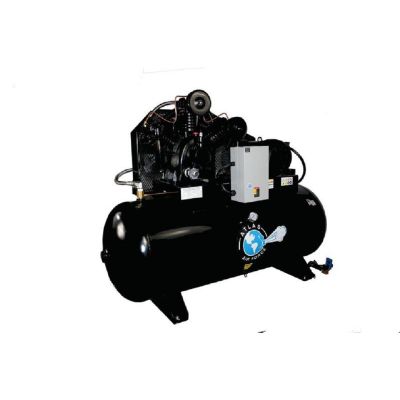

The AF10 is a heavy duty, commercial grade compressor that is perfect for large automotive repair or bodyshops looking for the most air possible. The Atlas AF10 comes standard with the air compressor "PLUSPACKAGE." The "PLUS" features for our commercial grade two stage air compressors include an automatic lowoil monitor, automatic tank drain, and air-cooled aftercooler. These three features help to extend the life of yourAtlas air compressor while also delivering "better air". The AF10 also comes standard with the added capacityof an oversized 120 Gallon horizontal tank.The Atlas Air Force AF10 operates between 145-175 PSI. This model comes standard with a USA made120-gallon horizontal steel tank and also includes a magnetic starter. The magnetic starter controls the electricinput and adds to the longevity of the unitThe Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed andbuilt to offer years of trouble-free service. The Atlas Air Force compressors are built to the same exactingstandards as the entire line of Atlas professional grade automotive equipment.
