Features and Benefits:

• 2-Stage Pump
• 5HP, Low RPM Motor
• 80 Gallon Vertical Tank (Made in the USA)
• Air Output 145-175 PSI
• Extremely Quiet Operation
• Magnetic Starter Included, Controls Electric Input
• Adding To Longevity Of The Unit
• Set of Vibro-Isolation Pads Included
• Hands Free Tank Drain ExtensionFinned Tank Inlet Tube For Reduced Tank Water Accumulation
• Heavy Duty Metal Belt Guard
• Electric: 220volt/1phase, 30 Amp Breaker,Number 10 Wire Required
• 1 Year Parts Only Warranty
• Motor Running: 5 Horsepower
• Delivered-CFM 145 PSI: 18.5
• Delivered-CFM 175 PSI: 14.5
• Pressure Setting: 145-175 PSI
• Tank Capacity: 80 Gallons
• Air Outlet Size: 1/2" NPT (Ball Valve Included)
• Overall Dimensions: L 36" x W 24" x H 69"
• Motor Voltage: 220volt, 1PH,30 amp breaker required
• Compressor Pump: 3 Cylinder, 2-Stage
• Shipping Weight: 485 lbs.

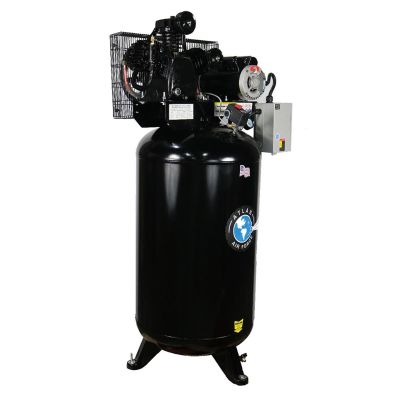

The Atlas Air Force AF7 is our entry level commercial grade two (2) stagevertical air compressor. This unit operates between 140 and 175 PSI. Thecombination of the commercial grade low RPM motor and the heavy duty 3cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast ironreciprocating air compressor pump delivers an incredible amount of air volumeand air pressure for a very low price. The AF7 comes standard with a USA made80 gallon steel tank and also includes a magnetic starter. The magnetic startercontrols the electric input and adds to the longevity of the unit.The Atlas Air Force air compressors are powerful, belt driven reciprocatingair compressors designed and built to offer years of trouble-free service. TheAtlas Air Force shop compressors are built to the same exacting standards asthe entire line of Atlas professional grade automotive equipment.
