Tire Changer & Wheel Balancer Combo Package:

Atlas® TC755 Tire Changer

• Tilt-Back Column Tire Changer
• Rim-Clamp Style
• Extra-Large turntable, more clearance
• Air operated jaws & bead breaker (external air supply required)
• Electric turntable
• Adjustable jaws, three mounting positions
• Button-Controlled Bead Breaker (operated at blade)
• Metal mount/demount head w/ metal roller or replaceable plastic inserts
• Column mounted inflator box w/ gauge Included
• Filter/Regulator/Lubricator Included
• 20" Tire Tool Included
• Lube Bucket with Brush Included
• Set of Large Plastic Jaw Covers Included
• Plastic Cover for Bead Breaker Shovel Included
• Multiple Replacement Plastic Inserts for M/D Head Included
• Built in "Beadblaster"

Atlas® WB49-2 Wheel Balancer

• Computer Controlled Motorized Spin Balancer
• Raised, Easy to Read Display
• Large Wheel Weight Tray
• Automatic 2D Data Entry
• Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
• Split-Weight Function for hiding weights behind spokes
• Automatic LED Light
• Auto-Positioning
• Automatic and pedal operated brake.
• Automatic start/stop when hood is lowered/raised.
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self-Diagnosing and Self-calibrating
• Exceptional stability in reading the unbalance between planes.
• Display in grams or ounces, and in mm or inches.
• No anchor-down installation needed
• Includes Plastic Quick-Relase Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

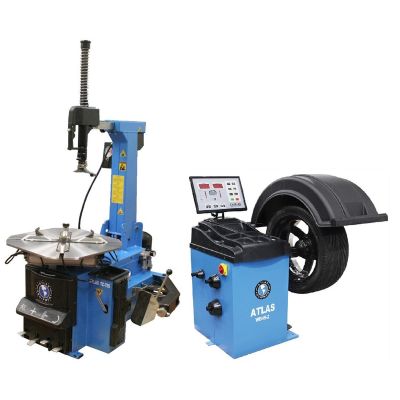

This combination package includes the Atlas® TC755 rim-clamp tilt-back tire changer & the Atlas® WB49-2 computerized spin balancer. This combination is perfect for commercial shops looking to handle a large volume of wheels daily as well as being able to change and balance custom, high-end wheels. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty. This part number is WILL CALL ONLY.

Atlas® TC755 Specifications

• External Locking Rim Dimensions (From Narrow Position to Wide Position): 11 7/8" to 27 7/8"
• Internal Locking Rim Dimensions (From Narrow Position to Wide Position): 13 7/8" to 29 7/8"
• Maximum Tire Diameter: 47"
• Maximum Wheel Width (Bead Breaker): 18"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs.
• Bead Breaker: 5500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Electric Requirement: 110volt
• Shipping Weight: 700 lbs

• Max Tire Diameter: 39"
• Rim Sizes (Cars & Light Trucks): 10" - 32" (Manual Data Entry May be Required over 23")
• Rim Width: 1 1/2" - 20"
• Shaft Size: 40mm
• Max Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: Automatic 2D (Automatic 3D Optional)
• Measurement: Standard or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibrating: YES
• Motor: 1/4 Horsepower
• Electric Requirement: 110volt
• Shipping Weight: 400 lbs

Accessories Available

• Center Post Adapter
• Quick Change Mount/Demount Head Kit
• Front Mounted Wheel Lift
• Leverless Head Device
