Atlas Equipment TC755EZ Rim Clamp Tire Changer + WB49-2-PRO Wheel Balancer Combo Package

Item ID: ATETCWB-COMBO4-FPD

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

Atlas Equipment TC755EZ Rim Clamp Tire Changer + WB49-2-PRO Wheel Balancer Combo Package

Item ID:
ATETCWB-COMBO4-FPD
As low as
$1.00
Atlas Equipment TC755EZ Rim Clamp Tire Changer + WB49-2-PRO Wheel Balancer Combo Package

Tire Changer & Wheel Balancer Combo Package:

Atlas® TC755EZ Tire Changer

  • Tilt-Back Column Tire Changer
  • Rim-Clamp Style
  • EZ Assist Arm Included
  • Extra-Large turntable, more clearance
  • Air operated jaws & bead breaker (external air supply required)
  • Electric turntable
  • Adjustable jaws, three mounting positions
  • Button-Controlled Bead Breaker (operated at blade)
  • Metal mount/demount head w/ metal roller or replaceable plastic inserts
  • Column mounted inflator box w/ gauge Included
  • Filter/Regulator/Lubricator Included
  • 20" Tire Tool Included
  • Lube Bucket with Brush Included
  • Set of Large Plastic Jaw Covers Included
  • Plastic Cover for Bead Breaker Shovel Included
  • Multiple Replacement Plastic Inserts for M/D Head Included
  • Built in "Beadblaster"

Atlas® WB49-2-PRO Wheel Balancer

  • Computer Controlled Motorized Spin Balancer
  • Raised, Easy to Read Display
  • Large Wheel Weight Tray
  • Automatic 3D Data Entry (Special Gauge for Width Measurment Included)
  • Split-Weight Function for hiding weights behind spokes
  • Automatic LED Light
  • Auto-Positioning
  • Automatic and pedal operated brake.
  • Automatic start/stop when hood is lowered/raised.
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self-Diagnosing and Self-calibrating
  • Exceptional stability in reading the unbalance between planes.
  • Display in grams or ounces, and in mm or inches.
  • No anchor-down installation needed
  • Includes Plastic Quick-Relase Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

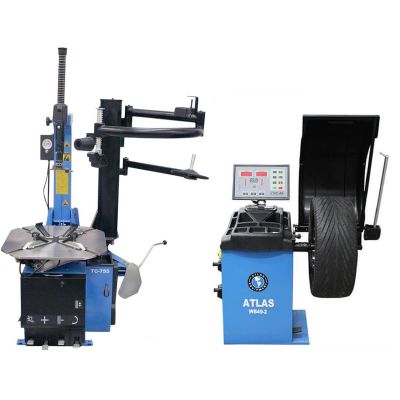

This combination package includes the Atlas® TC755EZ rim-clamp tilt-back tire changer with assist arm & the Atlas® WB49-2-PRO computerized spin balancer. This combination is perfect for commercial shops looking to handle a large volume of wheels daily as well as being able to change and balance custom, high-end wheels. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty. This part number is FREIGHT PREPAID.

Atlas® TC755EZ Specifications

  • External Locking Rim Dimensions (From Narrow Position to Wide Position): 11 7/8" to 27 7/8"
  • Internal Locking Rim Dimensions (From Narrow Position to Wide Position): 13 7/8" to 29 7/8"
  • Maximum Tire Diameter: 47"
  • Maximum Wheel Width (Bead Breaker): 18"
  • Table Motor: 1 HP
  • Turntable Rotating Torque: 885 ft/lbs.
  • Bead Breaker: 5500 LB. Force
  • Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
  • Electric Requirement: 110volt
  • Shipping Weight: 700 lbs

Atlas® WB49-2-PRO Specifications

  • Max Tire Diameter: 39"
  • Rim Sizes (Cars & Light Trucks): 10" - 32" (Manual Data Entry May be Required over 23")
  • Rim Width: 1 1/2" - 20"
  • Shaft Size: 40mm
  • Max Wheel Weight: 150 lbs.
  • Balancing Speed: 150 rpm
  • Data Entry: Automatic 3D
  • Measurement: Standard or Metric
  • Accuracy: 1 gram
  • Weight Position Resolution: 1.4 Degrees
  • Self Calibrating: YES
  • Motor: 1/4 Horsepower
  • Electric Requirement: 110volt
  • Shipping Weight: 400 lbs

Accessories Available

Full Specifications
Weight 1200.000000
Brand Atlas Automotive Equipment
UPC 810524029377

Warranty Info:

1 yr warranty on material and workmanship
