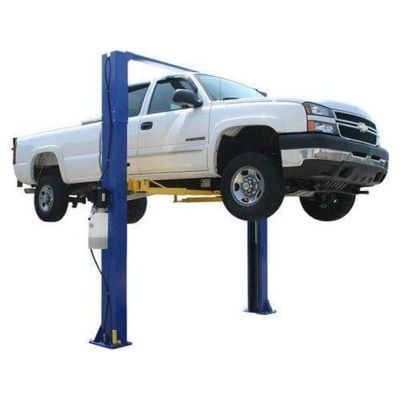

Atlas Equipment 9KOHX Overhead 9,000 lb. Capacity 2-Post Lift

Item ID: ATEXH-9KOHX-FPD
Free Item Included
Freight Included

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

Atlas Equipment 9KOHX Overhead 9,000 lb. Capacity 2-Post Lift

Item ID:
ATEXH-9KOHX-FPD
As low as
$1.00
Atlas Equipment 9KOHX Overhead 9,000 lb. Capacity 2-Post Lift

Features and Benefits:

  • 9,000 lb. Capacity
  • Overhead, Open-Floor design
  • Overall Height: 138" (11' 6") or 142" (11' 10")
  • Asymmetric/Symmetric Arms
  • Automatic Arm Restraints
  • Dual-Point Lock Release
  • Rubber Guards on Carriages
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System
  • Free 8 Piece Truck Adapter Set
  • Free set of Sliding Arm Adapters
  • Mounting Hardware Included
  • Shipping Weight: 1,450 lbs.
  • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
  • This part number FREIGHT PREPAID TO LOWER 48 (RESTRICTIONS APPLY)

The light duty Atlas® 9KOHX lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for "Mr. Homeowner" or small commercial shops looking to service cars, SUV’s and light duty trucks. The 9KOHX can be adjusted to two different height settings, either 11' 6" or 11' 10", allowing it to fit in almost any standard garage.

The Atlas® 9KOH has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.

The Atlas® 9KOHX two post "chain over roller" lifts have a spring loaded (Secondary Lock System) that automatically engages in the event of a slack or broken chain.

The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.



Atlas® 9KOHX Specifications

  • Capacity 9,000 LB.
  • Overall Height 138" (11' 6") or 142" (11' 10")
  • Overall Floor Width 134 1/2 (11' 2 1/2")
  • Outside Column to Outside Column 124 7/8 (10' 4 7/8")
  • Maximum Lift Height (Without Adapters) 74 1/2"
  • Maximum Lift Height (With Adapters) 81"
  • Minimum Arm Height 4"
  • Inside Column 110” (9' 2")
  • Drive Thru 100” (8' 4") Symmetric/ 90 1/2" (7' 6 1/2") Asymmetric
  • Column Size 7 1/4" x 11"
  • Column Thickness of Steel 5mm
  • Base Of Lift 14 1/4" x 18"
  • Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
  • Shipping Weight 1,450 LBS.
  • Adapter Heights 4 Each 1.5", 5"
  • Arm Hole/Adapter Peg Size 1.5'
  • Requires a minimum of 4" of concrete with a 3000 psi. rating
Full Specifications
Weight 1450.000000
Brand Atlas Automotive Equipment
UPC 810524028318

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
