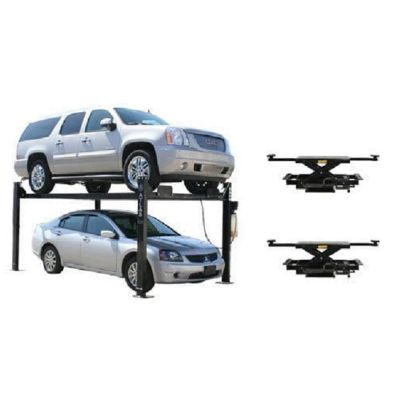

Atlas Equipment PRO8000EXT 4 Post Lift + RJ35 Sliding Jacks Combo (WILL CALL)

Item ID: ATEXH-PRO8EXT-COMBO

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

Atlas Equipment PRO8000EXT 4 Post Lift + RJ35 Sliding Jacks Combo (WILL CALL)

Item ID:
ATEXH-PRO8EXT-COMBO
As low as
$1.00
Atlas Equipment PRO8000EXT 4 Post Lift + RJ35 Sliding Jacks Combo (WILL CALL)

Features and Benefits

  • Combo package includes Garage Pro8000EXT & two RJ35 Bridge Jacks
  • Caster Kit With Polyurethane Wheels Included
  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • 4 Plastic Drip Trays Included
  • Wheel Stops Included
  • Truck Adapter set for each Bridge Jack Included
  • Jack comes with truck adatper set
  • This part number WILL CALL ONLY

The Atlas® Garage PRO8000EXT is a true 8,000 LB. four post lift and is one of our most popular hobbyist lifts. This lift incorporates many of the great features of both the Atlas® Garage PRO8000 and the Atlas® Garage PRO9000.

Many of our customers drive an SUV or pick up truck and wanted a storage lift that would “go higher” to allow them to park their taller vehicles under the elevated platform. Many of our competitors sell “taller” lifts. However, their “taller” lifts also have longer runways. Our customers requested that we make a lift which lifts higher, but without the extra length (longer runways take up valuable garage space). Most customers want to store a car on top and park a SUV or pick up truck below. The Atlas® Garage Pro 8000 EXT has been engineered to provide 79? of clearance UNDER the bottom of the raised runway. If you need the extra lifting height of the Atlas® Garage Pro 9000, but do not need the extra width and runway length provided by that lift, then the Atlas® Garage PRO8000EXT is the perfect choice.

This combo package also includes two of the the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

  • Capacity 8,000 Lb.
  • Lifting Height To Top Of Runway 84 1/4" (7' 1/4")
  • Clearance Under Runways 79" (6' 7")
  • Height Of Columns 98 1/2" (8' 2 1/2")
  • Overall Width (Without Motor) 104 1/2" (8' 8 1/2")
  • Overall Width (With Motor) 115" (9' 7")
  • Overall Length With Approach Ramp 206 3/4" (17' 2 3/4")
  • Approach Ramp 37" (3' 1")
  • Runway Width 21 1/4" (w/ Rails) or 18 3/4" (Driving Surface)
  • Runway Length 165 3/4" (13' 9 3/4")
  • Runway Thickness 4 1/2"
  • Width Between Runways 37" (3' 1")
  • Width Between Runway Rails 31 1/2" (2' 7 1/2")
  • Outside Runway To Outside Runway 74 5/8" (6' 2 5/8")
  • Clearance Between Columns 94 1/2" (7' 10 1/2")
  • Length Between Columns 157 1/2" (13' 1 1/2")
  • Maximum Wheel Base 153 1/2" (12' 9 1/2")
  • Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2" (6' 8 1/2")
  • Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED
  • Shipping Weight 1,850 lb.
  • Atlas® RJ35 Sliding Jack Specifications

    • Capacity: 3500 lbs
    • Lower Extension Width (Between Runway): 20 1/2" to 47"
    • Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"
    • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
    • Lift Pad Height Above Arm: 1 3/8"
    • Max Height Raised w/o Adapter: 11"
    • Max Height Raised w/ Adapters: 17 1/4"
    • Shipping Weight: 350 lbs
    • Adapter Heights: 2 Each 1 1/2", 5"
    • Arm Hole/Adapter Peg Size: 1 1/2"
Full Specifications
Weight 2600.000000
Brand Atlas Automotive Equipment
UPC 810524027922

Warranty Info:

2 yr warranty on material and workmanship
