Features and Benefits:

• 6,000 lbs. Capacity
• Portable
• Low Profile Design
• Rigid Base Construction
• Built in Drive-over Ramps
• Single Point Lock Release
• Two-Stage Telescoping Swing Arms
• Locking Arm Restraints
• Lifting Height: 5? 11 2/3? (71 2/3?)
• 110volt Electric Operation (30 AMP BREAKER REQUIRED)
• Free 8 Piece Truck Adapter Set
• Includes Double Screw-up Adapters
• Shipping Weight: 1,900 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
• This part number WILL CALL ONLY

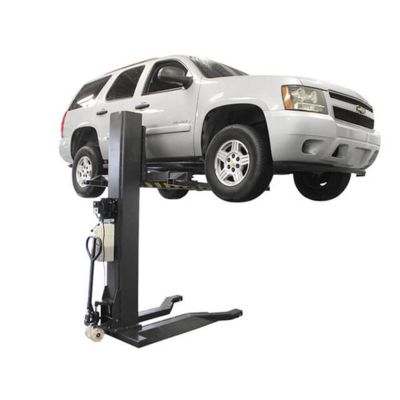

The Atlas® PSP-6000 portable single post lift is the perfect choice for the commercial service shop or the Mr. Homeowner who does not want to tie up a bay space with a permanently mounted above ground lift. This portable vehicle lift allows the operator to walk under the vehicle or move around the vehicle to perform wheel service. When the Atlas PSP-6000 is not in use, it may be rolled out of the way into a corner. The PSP-6000 also has a built-in ramp allowing vehicles to drive over it, further maximizing garage space.

The Portable Single Post Lift rolls easily on a level concrete surface and can be used either inside or outside of your garage. The column fits under a 9 foot (108 inch) ceiling and allows the operator to raise most vehicles high enough to access many parts of the vehicle that would not be accessible with a mid-rise lift.

The Atlas® PSP-6000 column is equipped with the chain break mechanism that automatically locks the carriage into place in the unlikely event of a chain failure.

Atlas® PSP-6000 Specifications

• Capacity 6,000 LB.
• Overall Height 102 3/4" (8' 6 3/4")
• Max. Lifting Height (Without Truck Adapters) 71 2/3" (5' 11 2/3")
• Max. Clearance 68" (5' 8")
• Minimum Height 5"
• Overall Maximum Dimensions L: 111 1/2" x W: 96" x H: 102 3/4"
• Column Size 10 1/2" x 12 1/2"
• Distance Between Lifting Pads (Column Side to Offside) 39 1/2" to 81"
• Distance Between Lifting Pads (Column Side to Column Side) 53" to 73"
• Distance Between Lifting Pads (Offside Side to Offside) 54 1/3" to 91 1/2"
• Motor/Electric Requirement 110volt, 30 amp breaker required
• Oil Requirement 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight 1,900 lbs.
• Adapter Heights 4 Each 2.75", 6”
• Arm Hole/Adapter Peg Size 2”
