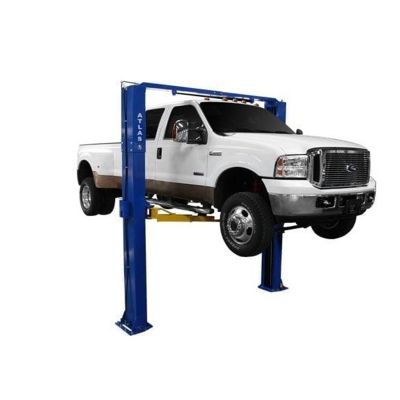

Atlas Automotive Equipment Atlas Equipment PV10PX Commercial Grade Overhead 10,000 lb. Capacity 2-Post Lift (WILL CALL)
Item ID: ATEXH-PV10PX
Proposition 65 Warning for California Consumers
WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov
Compare Products
Atlas Automotive Equipment Atlas Equipment PV10PX Commercial Grade Overhead 10,000 lb. Capacity 2-Post Lift (WILL CALL)
Item ID:
ATEXH-PV10PX
Atlas Automotive Equipment Atlas Equipment PV10PX Commercial Grade Overhead 10,000 lb. Capacity 2-Post Lift (WILL CALL)
Features and Benefits:
- 10,000 lb. capacity
- Commercial Grade
- Asymmetric/Symmetric Arms
- Automatic Arm Restraints
- "Padded" Shut-Off Bar
- Thick Rubber Covers On Carriages
- Single Point Lock Release
- Direct-Drive Cylinders
- Powder Coat Finish
- Adjustable Height - 11' 11 1/8" or 12' 3"
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1875 lbs.
- 5 Year Structural Warranty/2 Year Hydraulic Warranty
- This part number for WILL CALL ONLY
The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bullet-proof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.
The commercial grade Atlas® PV-10 two post lift includes some modifications and improvements that make it one of the most popular above ground lifts in the world.
This lift is the perfect choice for use in either a large commercial service department or for the "pole barn" owner who wants the "biggest and baddest" lift in the country. The Atlas® 10PX is designed and engineered to safely lift (and work on) everything from a Smart Car® to a one ton diesel dually.
Atlas® PV10PX Specifications:- Capacity: 10000 lbs
- Overall Height: 143 1/8" (11' 11 1/8") or 147" (12' 3")
- Overall Floor Width: 137 1/2" (11' 5 1/2")
- Outside Columns: 125 1/2" (10' 5 1/2"")
- Inside Column Width: 110 1/8" (9' 2 1/8")
- Drive Thru: 90 1/4" Asymmetric/ 96 1/4" Symmetric
- Max Lift Height w/o Adapters: 72 1/2"
- Max Lift height w/ Adapters: 81 1/4"
- Minimum Arm Height: 4 1/2"
- Column Size: 7 1/2" x 14 1/2"
- Base of Column: 17 1/2" x 20 1/2"
- Column Steel Thickness: 6mm
- Arm Steel Thickness: 6mm
- Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 1875 lbs
- Adapter Heights: 4 Each 1.25", 2.5", 5"
- Arm Hole/Adapter Peg Size: 1.5"
| Weight | 1875.000000 |
|---|---|
| Brand | Atlas Automotive Equipment |
| UPC | 810524029391 |
Warranty Info:
5 yr warranty on material and workmanship
