Features and Benefits:

• 12,000 lb capacity
• Extra Tall & Extra Wide
• Commercial Grade
• Adjustable height 165 IN (13 FT 9 IN) or 177 IN (14 FT 9 IN)
• Special low height 150 IN (12 FT 6 IN) (REQUIRES PURCHASE OF ADDITIONAL CABLES)
• Symmetric arms
• Automatic Arm Restraints
• “Padded” Shut-Off Bar
• Door Guards on Carriages
• Single Point Lock Release
• Dual Direct-Drive Cylinders
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping weight: 2,160 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.

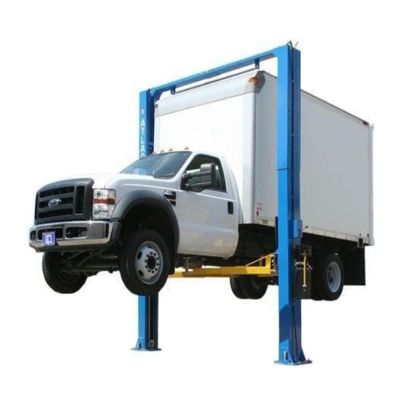

The Atlas® PV12PX is a commercial grade lift designed to accommodate both long wheel base trucks and because of a low pad height, passenger cars. The distance between the symmetrical columns is almost 123 inches with a drive through space of over 109 inches. The extra distance between the symmetrical columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel base trucks with a variety of running boards. The extra height means extra clearance allowing you to lift vans and box trucks without worry.

The Atlas® XH-PV12PX features three height settings, the lowest setting of 150 inches or 12 foot 6 inches REQUIRES PRUCHASE OF ADDITIONAL CABLES

Atlas® ATTD-PV12PX Specifications

• Capacity 12,000 LB.
• Overall Height 165" (13� 9”) or 177” (14� 9”)
• Special Low Height 150" (12� 6”) (REQUIRES PURCHASE OF EXTRA CABLES)
• Overall Floor Width 153" (12� 6 3/8”)
• Outside Column to Outside Column 139 1/8" (11� 7 1/8")
• Maximum Lift Height (Without Adapters) 72 1/4"
• Maximum Lift Height (With Adapters) 81"
• Minimum Arm Height 4 1/2"
• Inside Column 123” (10� 3”)
• Drive Thru 109" (9� 1”)
• Column Size 7 1/2" x 14 1/2"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 20 1/2"
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,160 LBS.
• Adapter Heights 4 Each 1.25”, 2.5”, 4”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 6" of concrete with a 3000 psi. rating
