Features and Benefits:

• 15,000 lb capacity
• Extra Tall & Extra Wide
• Commercial Grade
• Adjustable height 165" (13' 9") or 177" (14' 9")
• Special low height 150" (12' 6") (Requires purchase of extra cables)
• Symmetric arms
• Automatic Arm Restraints
• "Padded" Shut-Off Bar
• Door Guards on Carriages
• Single Point Lock Release
• Direct-Drive Cylinders
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping weight: 2,490 lb
• 5 Year Structural Warranty/2 Year Hydraulics Warranty
• This part number for FREIGHT PREPAID

The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bullet-proof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.

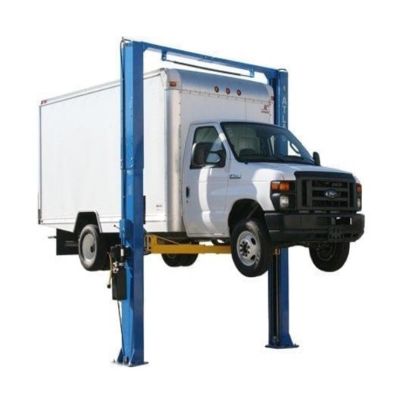

The Atlas® PV-15PX is a commercial grade lift designed to accommodate both long wheel base trucks and passenger cars. The distance between the symmetrical columns is over 123" with a drive thru space of over 109". The extra distance between the symmetrical columns will allow the widest of vehicles to be lifted. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel base trucks with a variety of running boards and frame configurations Lowest height setting requires purchase of additional, shorter, cables.

Atlas® ATXH-PV15PX Specifications:
• Capacity: 15000 lbs
• Overall Height: 165" (13' 9") or 177" (14' 9")
• Special Height Setting: 150" (12' 6") (Requires Purchase of Extra Cables)
• Overall Floor Width: 150 3/4" (12' 6 3/4")
• Outside Columns: 139 1/8" (11' 7 1/8")
• Inside Column Width: 123 1/2" (10' 3 1/2")
• Drive Thru: 109 1/2" (9' 1 1/2")
• Max Lift Height w/o Adapters: 72 1/4"
• Max Lift height w/ Adapters: 81"
• Minimum Pad Height: 7 1/4"
• Column Size: 7 1/2" x 14 1/2"
• Base of Column: 17 1/2" x 20 1/2"
• Column Steel Thickness: 6mm
• Arm Steel Thickness: 6mm
• Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 2490 lbs
• Adapter Heights: 4 Each 1.25", 2.5", 5"
• Arm Hole/Adapter Peg Size: 1.5"
