Features and Benefits:

• Provides step-by-step guided instructions for equipment setup and the complete HVAC diagnostic and repair workflow.
• Displays vehicle-specific A/C system specifications, component locations, compressor types, and refrigerant metering information.
• Combines HVAC pressures, OBD sensor data, blend door operation, and outlet temperature readings on a single screen for faster diagnostics.
• Identifies refrigerant leaks and excessive system moisture to help pinpoint HVAC system issues accurately.
• Utilizes nitrogen-based pressure leak testing and system tightness verification for improved diagnostic accuracy and faster evacuation procedures.
• Allows manifold gauges to disconnect from A/C lines while continuing to monitor high- and low-side pressures.
• Tests variable displacement compressors using OBD bi-directional controls or direct ECV valve connections while comparing live system pressures.
• Features a large sight glass for visual inspection of UV dye, oil contamination, heat-related component damage, and debris within the system.
• Performs self-diagnostics to verify equipment efficiency, system tightness, and measurement accuracy.
• Integrates graphical diagnostic diagrams with live pressure, temperature, and vehicle data for a comprehensive view of HVAC system performance.
• Modular wireless design allows multiple components to be used independently, improving shop efficiency and workflow.
• Supports advanced thermal management diagnostics for modern vehicles, including electronically controlled compressors and heat pump systems.

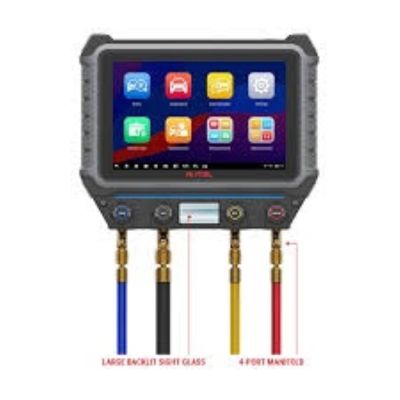

The Autel MaxiHVAC AC909 is an advanced 4-port manifold system designed to bring greater precision and understanding to vehicle HVAC diagnostics. By combining guided workflows, live pressure and temperature analysis, and intelligent diagnostic capabilities, it helps technicians accurately identify and resolve system issues. The AC909 provides deeper insight into the relationship between HVAC components, electronic controls, and system performance for more effective repairs. Built for modern vehicle climate systems, it delivers the tools and confidence needed to diagnose and service today's increasingly complex HVAC technologies.
