Features and Benefits:

• 66-ton capacity for heavy-duty applications
• Movable cylinder for off-center pressing
• Powerful 5.3 hp motor for efficient operation
• Sturdy construction ensures long-lasting durability
• Precise 9.84" stroke for versatile pressing tasks
• High maximum pressure of 3814 psi
• Easy operation with a user-friendly design

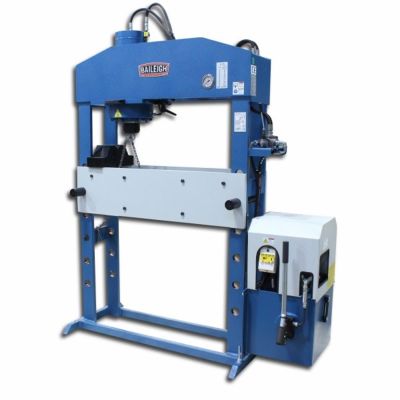

Baileigh 220V 3Phase 66 Ton Hydraulic H-Frame Press 9.84" Stroke (1012402) is designed for heavy-duty industrial applications. This robust machine features a 66-ton capacity, making it ideal for various pressing tasks. The 9.84" stroke ensures precision and versatility, allowing you to handle a wide range of materials with ease.

This hydraulic H-frame press is equipped with a powerful 5.3 hp motor, operating at 220V 3-phase power. The cylinder can be moved left and right within the frame. The sturdy construction and high-quality components ensure long-lasting performance and reliability in demanding environments.

Specifications

• Item Number: HSP-66M-HD
• Return Speed: .393" / sec.
• Maximum Pressure: 3814 psi
• Motor: 5.3 hp
• Piston Head Diameter: 3.94"
• Pump Speed: .871 / 3.619 / gal/min.
• Oil Capacity: 7.92 gal
• Working Speed: .086" / sec.
• Working Width: 40.94"
• System Oil Capacity: 2.11 gal
• Lowering Speed: .362" / sec.
• Maximum Capacity: 66 tons
• Cylinder Stroke: 9.85"
• Cylinder Movable: Yes
• Cylinder Diameter: 8.26"
• Rpm: 3000
• Power: 220V / 3-phase
