Features and Benefits:

• Fully Automatic or User-Selected Manual Processes
• 7 Inch Color Touch-Screen Display
• Contains Refrigerant Identifier
• Wireless Network Printing
• Hybrid Ready
• High-Capacity Oilless Compressor
• Includes 30lb Tank (Upgradeable to 50lb)
• 2-Year Full Coverage Warranty
• Power: 115V 60Hz
• Compressor: 2/3 HP twin cylinder oilless
• Vacuum Pump: 2-Stage, 2 CFM, 1/3 HP
• Gauges: 3.5” Low-side (30 in/Hg to 250 psi); High-side (0 to 600 psi)
• Hoses: 10 Ft. (3.0 m), Barrier Type
• Refrigerant: R-134a / R-1234yf
• Maximum Recovery Rate: Up to 1 lb (0.453 kg) per minute
• Storage Tank: MSX3030 (includes two 30 lb. tanks); upgradable to 50 lb.
• Display: 7” Color Touch-Screen
• Construction: Heavy-duty steel frame
• Operating Temperature Range: 50°F to 122°F (10°C to 50°C)
• Operating Humidity Range: 0% to 95% (Non-Condensing)
• Dimensions: 43.6” x 22.6” x 28.9”
• Gross Weight: 208 lb. (including packaging)
• Warranty: MAXXAIR™ 2-Year Full Coverage Warranty
• Replacement Filter: CPSARXF5
• Maintenance Kit: CPSFX3030X1

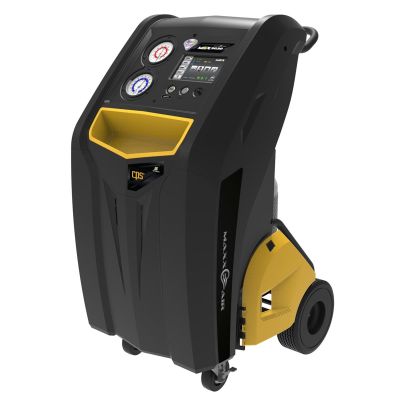

Experience the pinnacle of refrigerant management with the MSX3030, setting a new standard in Refrigerant Recovery, Recycling, and Recharge (R) Management Centers. Engineered to elevate your workflow with unmatched efficiency and precision performance, the MSX3030 surpasses expectations. Equipped with a high-capacity oilless compressor, it accelerates recovery time by up to 30% faster than competitors, validated by rigorous internal testing. Seamlessly navigate operations with the intuitive 7” Color touch-screen display, ensuring effortless interaction and usability. Plus, with its integrated refrigerant identifier and compatibility with multiple refrigerants, including R-134a and R-1234yf, the MSX3030 is the ultimate solution for streamlined refrigerant management. Experience MSX precision performance with increased productivity in the MSX3030.
