Features and Benefits:

• Accurate low ohms readings using included Kelvin test leads
• Low resistance resolution of 0.1 milliohm or 0.00001 ohm
• Diagnoses out of range resistance in EV and hybrid three phase motors
• Functions as a full DVOM measuring volts, amps, ohms, capacitance, continuity, and diode testing
• CAT III 1000V approved tester with Min and Max capture for high and low readings
• Includes blow molded case and six AA batteries

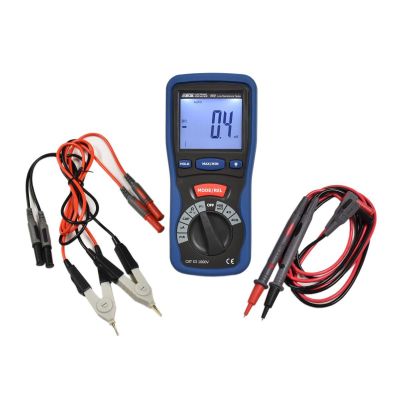

560 checks Hybrid and EV stator windings for inconsistent or out of range resistance which leads to drivablity problems. Using a milliohm meter is a critical diagnostic procedure for ensuring the integrity, efficiency and reliability of the electric motor�s winding. In three phase stators, all phases should exhibit nearly identical resistance values. This is one of the higher failure rates in electric motors and 560 can help you diagnose it.
