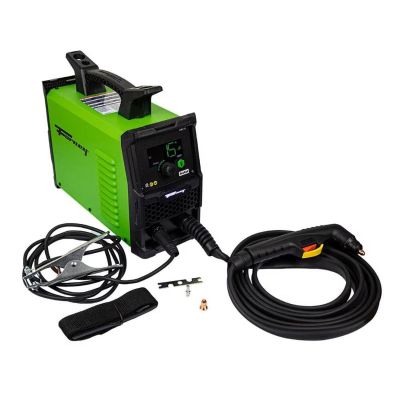

Forney TruCut 120V Plasma Cutter

Forneys TruCut is a compact 120-volt plasma cutter built for DIY, farm and ranch, maintenance, and light fabrication work.Powered by inverter technology with a 20-amp maximum output, it delivers clean cuts up to 1/4 inch and can sever materialup to 3/8 inch.

Featuring TruSet Plasma Control, users can choose automatic or manual operation. Enter material thickness and TruSet automatically selects the correct amperage for cleaner cuts and minimized kerf, or use manual mode for custom control.

With Drag Torch Technology and Pilot Arc, the TruCut maintains a stable arc across rusty, painted, or expanded metal,ensuring consistent cutting and easy restarts. A built-in regulator and moisture separator deliver clean, consistent airto extend consumable life.

Weighing just 17.3 lbs and equipped with a bright digital display, a 13 ft torch lead, and generator compatibility, the TruCut is CSA certified and backed by a 3-year machine warranty for reliable, safe performance.

Specifications:

• Clean Cut Thickness: 1/4 in (6.35 mm)
• Max Sever Thickness: 3/8 in (9.525 mm)
• Output Maximum: 20 A
• Duty Cycle: 35% @ 20 A
• Input Power: 120 VAC, single-phase, 50/60 Hz
• Input Current: 20A time-delay breaker minimum (30A for max performance)
• Power Supply Type: Inverter technology
• Generator Compatible: Yes; 4,000W continuous output, 5% THD max
• Recommended Inlet Pressure: 60‐100 PSI (4.1‐6.9 bar)
• Recommended Air Flow Rate: 2.5 CFM (70.8 L/min)
• Minimum Air Line Inner Diameter: 1/4 in (6.35 mm)
• Safety Certification: CSA

Cable Lengths:

• Torch Lead Length: 13 ft (4 m)
• Ground Cable Length: 10 ft (3 m)
• Power Cable Length: 7 ft (2.1 m)

Unit Dimensions (Out of the Box):

• Weight: 17.3 lbs (7.9 kg)
• Dimensions (H � W � D): 12.4 � 6.6 � 17.75 in (31.5 � 16.8 � 45.1 cm)

Features:

• TruSet Plasma Control: Automatic or manual amperage adjustment for optimal cut quality
• Pilot Arc Performance: Maintains arc through rust, paint, and expanded metal
• Drag Torch Technology: Allows direct contact with the workpiece for stable, accurate cuts
• Digital Display: Bright, easy-to-read interface
• Portable and Generator Friendly: Ideal for field or remote work
• Built-in Regulator and Moisture Separator: Improves performance and consumable life
• CSA Certified: Meets strict safety and performance standards

Warranty:

• 3-Year Machine Warranty
• 90-Day Torch Warranty

Recommended Forney® Accessories and Consumables:

• Item #85392: Plasma cutter electrodes and tips consumable kit, 20 AMP, 4-pack
• Item #85755: Plasma cutting electrode, up to 40A, 2-pack
• Item #85414: Plasma cutting tip, 20A
• Item #85394: Shield cup for plasma torch
• Item #85393: Swirl ring for plasma torch
• Item #85674: 13-Piece Plasma Cutter Consumable Kit, 20 Amp
