Features and Benefits:

• Max. capacity 3 and 5 t�� For clamping depths up to � 200 mm external, � 70-260 mm internal, andclamping reach up to 300 mm�� In 3 of 4 spindles the spindle tip (ball/tip) can be rotated�� Quick-release pulling legs with intregral T-profile for a better transmission of force�� The forged leg feet are very slim particularly suitable for barely accessible places�� 2 rigid extensions each 100 and 150 mm with leg brakefor quick adjustment of the legs�� 1100 CT2-1.04/12A to retrofit existing L-BOXX®es 136�� With Check-Tool insert for quick check of completeness�� As tools are fully sunk in the foam, the equipped insert can be stacked�� Insert for use in drawers with min. dimensions 400 x 310 x 90 mm

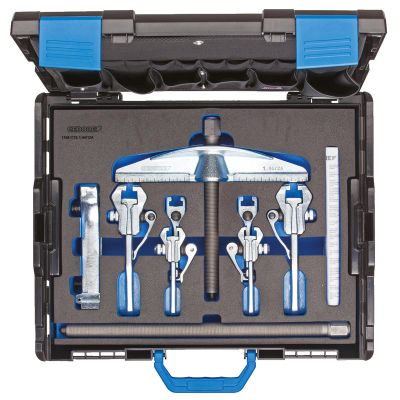

Clamping width (max.) external pulling [mm]: 200 mm, Clamping width a2 (max.) internal pulling [mm]: 260 mm, Clamping width a2 (min.) internal pulling [mm]: 70 mm, Content for sentences: 1100 CT2-1.04/12A1100 L, Net weight [kg]: 9,6 kg, Parts list (Text): Universal puller No. 1x 1.04/1A, 2-arm 130x100 mmUniversal puller No. 1.04/2A 2-arm 200x150 mmExtension with hook brake No. 106/A-100-VB, 100 mmExtension with hook brake No. 106/B-150-VB, 150 mmSpindle No. 1.1406200 17 M14x1,5 200 mmspindle No. 1.2106350KS, 22, G 1/2", 350 mm, with ball point+ GEDORE L-BOXX® 136 No. 1100 L, reversible arms available: yes, Tractive force (max.) [t]: 3 and 5 ton, Usable clamping reach [mm]: 300 mm; For clamping depths up to � 200 mm external, � 70-260 mm internal, and clamping reach up to 300 mm In 3 of 4 spindles the spindle tip (ball/tip) can be rotated Quick-release pulling legs with intregral T-profile for a better transmission of force The forged leg feet are very slim particularly suitable for barely accessible places 2 rigid extensions each 100 and 150 mm with leg brake for quick adjustment of the legs With Check-Tool insert for quick check of tool completeness No. 1100 CT2-1.04/12A for retrofitting existing L-BOXX®s 136 As tools are fully sunk in the foam, the equipped insert can be stacked Insert can be used in drawers with minimum dimensions 400 x 310 x 60 mm
