Features and Benefits:

• GEDORE Spring Compressor
• universally compress strut springs, safely and quickly
• Strut and spring compressors help to safely compress and hold strut springs when disassembling struts and replacing shock absorbers. They allow users to service components without replacing entire strut units. When compressing springs, the strut spring compressor can help to keep the mechanical energy of the spring contained. The locking jaws latch on to the upper and lower portion of the strut spring, and the compression arms securely hold the spring in place to allow removal of the strut body.

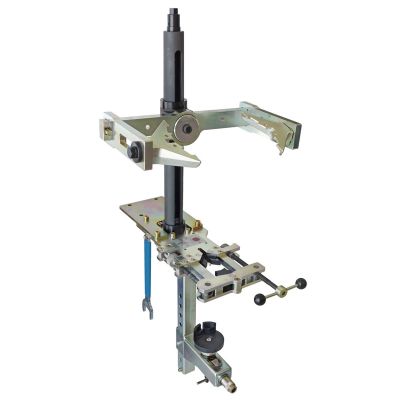

The stationary spring compressor allows the tensioning of almost every McPherson strut available on the market. Since the spring is tensioned against the lower spring plate via the upper spring plate, the shape of the spring or spring pitch is irrelevant. The unique design with variable spring plate support, the adjustable support and the adjustable holding device with one-hand operation make this spring compressor one of the most universal and safest on the market. The adapter plate allows the spring compressor to be easily mounted on a tool/assembly trolley or workbench. Pros: Universal fit! The large and variable adjustment range on the spring compressor allows tensioning of almost every McPherson spring and shock leg available on the market. Tensions even the strongest springs - E-MOBILITY-READY Maximum safety! The simple, stable and user-friendly operation as well as the safely designed and well thought-out overall construction of the stationary spring tensioner offers a maximum degree of safety. Clamping of different spring designs! Tensioning of shock absorbers with tension stop spring! Tensioning of shock absorbers with tension stop spring! Due to the high clamping travel of the spring compressor of 570 mm in combination with the high clamping force of up to max. 15 000 N, even shock absorbers with tension stop springs, which require a very high spring preload, are no problem. No damage to the damper tube! The clamping bars of the holding device can be quickly adjusted parallel to the respective tube diameter via a knurled nut. The plastic clamping jaws ensure that the damper tube is held gently. One-man operation! The entire work sequence can be carried out by just one person. This is also made possible by the damper tube holding device with quick clamping and one-hand operation. Mobile due to tool/assembly trolley!
