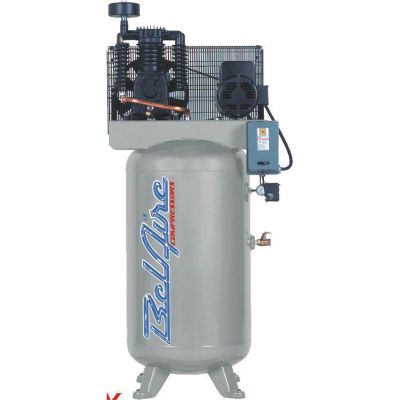

5HP VERT ELITE PACKAGE COMPLETE
Item ID:
IMC318VE
5HP VERT ELITE PACKAGE COMPLETE
Features and Benefits
- Stop-Start pressure switch control
- Magnetic charger
- ASME safety valve fully enclosed belt guard
- Includes triple-pass pump mounted aftercooler
- Two year warranty
This 5 HP 80 gallon compressor comes with all the bell and whistles including: magnetic starter, low oil level switch and automatic tank drain. Completely tested at full pressure and shipped full of oil. 208-230 Volt Single Phase 25 Amp. 18.50 ACFM @ 100 PSI; 16.60 ACFM @ 175 PSI. 175 PSI Max Pressure. Magnetic Starter Required. Cast Iron Cylinder. Stainless Steel Valves. 80 Gallon ASME Tank. 3/4" Outlet. Dim: 39" Long x 24" Deep x 77" High. Shipping Weight: 457lbs.
Drop Ship Only
| UPC | 840534010607 |
|---|---|
| Weight | 470.000000 |
| Brand | IMC (Belaire) |
| CFM | 22.43 CMF |
| Horsepower | 5 hp |
| Style | Reciprocating |
| Tank size | 80 gallon |
| Wire Size | Two Stage |
| Voltage | 230V |
| Controls | Magnetic Starter |
| Max PSI | 175 psi |
| Safety Features | Low oil switch |
| Tank Style | Vertical |
| Pump RPM | 700 |
| Phase | SINGLE PHASE |
| ACFM | 16.6 ACFM |
| Item | Air Compressor |
Warranty Info:
Call vendor for warranty
