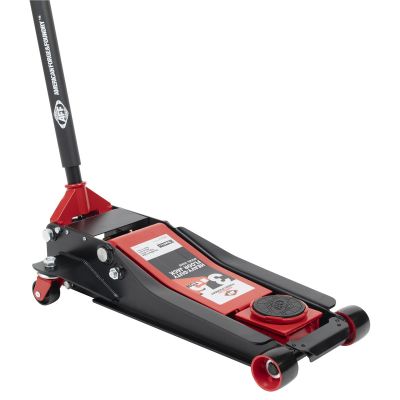

Features and Benefits:

• Color: Red/Black
• Capacity: 3.5 Ton
• Minimum Height: 3.75"
• Maximum Height: 20.5"
• Power Type: Hydraulic
• Operation Type: Manual
• Quick Lift Feature: Lightning™ Lift - Single Piston One Pump To Load
• Working Air Motor Pressure: N/A
• Release Assembly: U-Joint
• Chassis Type: Short Chassis Service Jack
• Chassis Length (in.): 27"
• Chassis Width (in.): 14.4"
• Handle Type: Straight
• Handle Length (in.): 48"
• Handle Type (Pcs): 2
• Saddle Size: 5.1"
• Includes Saddle Pad: Yes
• Saddle Pad Material: Rubber
• Handle Bump Protector: Yes
• Rear Casters: Qty 2
• Front Wheels: Qty 2
• Hydraulic Return Spring: Yes
• Overload Bypass Valve: Yes
• Handle Return Spring: Yes
• Handle Docking Position: 90°
• Handle Locking Positions: N/A
• Service Parts Available: Yes
• Duty Level: Heavy Duty
• Weight (lb.): 92.5 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Lightning™ hydraulic lift system quickly raises the saddle in one pump to load and the vehicle to desired lift height.
• 20.5” max lift height provides versatility needed to lift most cars, SUV�s and pick-up trucks
• Heavy gauge steel frame with upper and lower flanges withstand twisting of the jack when under load
• Jack is equipped with a rubber saddle pad and foam handle bumper to protect the vehicle
• Ball-bearing rear mounted swivel casters for easy maneuverability. Equipped with safety bypass valve to prevent overloading. Meets or exceeds 2019 ASME PASE Standards


Designed with the professional service technician in mind, AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel, UV powder coated paint, upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.
