Features and Benefits:

• Color: Red/Black
• Capacity: 60/40/20 Tons
• Product Type: Axle Jack
• Stages: 3
• Power Type: Hydraulic
• Operation Type: Air Assist
• Duty Level: Super Heavy Duty
• Minimum Height (in.): 6.89"
• Maximum Height without Extensions: 24.73"
• Maximum Height with Extensions: 29.23"
• Ram Lift (in.) - Stage 1: 3.03"
• Ram Lift (in.) - Stage 2: 5.79"
• Ram Lift (in.) - Stage 3: 9.02"
• Capacity (T) - Stage 1: 60 Tons
• Capacity (T) - Stage 2: 40 Tons
• Capacity (T) - Stage 3: 20 Tons
• Handle Length (in.): 54"
• Number of Handle Pieces: 1
• Handle Locking Positions: 90°/45°/180°
• Chassis Length (in.): 36"
• Chassis Width (in.): 16"
• Saddle Diameter: 4"
• Number of Extensions: 2
• Extension Sizes (in.): 1.75" & 3"
• Extension Screw: N/A
• Wheel Diameter (in.): 8"
• Working Air Pressure: 116 - 174 PSI
• Weight: 165 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Special Features: Air Return|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.

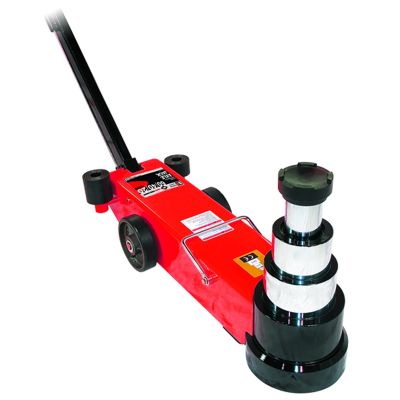

• This SUPER HEAVY DUTY, 3 Stage 60/40/20 Ton Air Hydraulic Jack covers a wide variety of demands from the Heavy-Duty Trucking, Agricultural, Fleet, Construction and Military sectors.
• The piston head seal design is borrowed from Industrial technology providing a superior low- and high-pressure seal, giving this jack a much better hold under severe load conditions.
• The extra-long 54” handle can be locked in 3 positions for easy positioning of this jack in hard to reach places.
• Integral Descent Metering maintains a controlled and safe lowering of the load.
• Single piece base construction provides superior strength for increased load stability.
• Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring.
• Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under even the harshest conditions.
• Air assisted lowering speeds up ram retraction.
• Built in overload safety valve prevents damage to unit due to excessive load.
• Comes with 2 extensions (3”, 1.75”) and saddle adapter.
