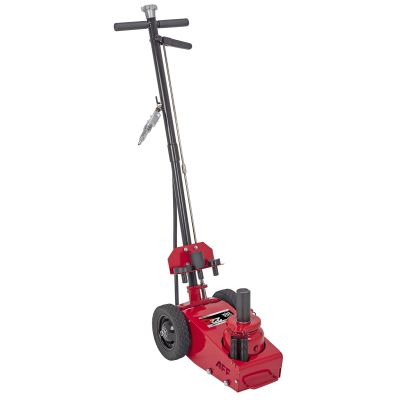

American Forge & Foundry AFF - Axle Jack - 22 Ton Capacity - Air/Hydraulic - Spring Return - w/ 3 pc Ext Kit & 2 pc Handle

Item ID: INT565F
Free Item Included

American Forge & Foundry AFF - Axle Jack - 22 Ton Capacity - Air/Hydraulic - Spring Return - w/ 3 pc Ext Kit & 2 pc Handle

Item ID:
INT565F
As low as
$1.00
American Forge & Foundry AFF - Axle Jack - 22 Ton Capacity - Air/Hydraulic - Spring Return - w/ 3 pc Ext Kit & 2 pc Handle

Features and Benefits:

  • Color: Red/Black
  • Capacity: 22 Tons
  • Product Type: Axle Jack
  • Stages: 1
  • Power Type: Hydraulic
  • Operation Type: Air Assist
  • Duty Level: Heavy Duty
  • Minimum Height (in.): 8.25"
  • Maximum Height without Extensions: 12.75"
  • Maximum Height with Extensions: 16.75"
  • Ram Lift (in.) - Stage 1: 4.75"
  • Ram Lift (in.) - Stage 2: N/A
  • Ram Lift (in.) - Stage 3: N/A
  • Capacity (T) - Stage 1: 22 Tons
  • Capacity (T) - Stage 2: N/A
  • Capacity (T) - Stage 3: N/A
  • Handle Length (in.): 42.7"
  • Number of Handle Pieces: 2
  • Handle Locking Positions: 90°/45°/180°
  • Chassis Length (in.): 20.25"
  • Chassis Width (in.): 12.7"
  • Saddle Diameter: 2"
  • Number of Extensions: 4
  • Extension Sizes (in.): 3/4",1", 2 3/4", 4"
  • Extension Screw: N/A
  • Wheel Diameter (in.): 8"
  • Working Air Pressure: 90-180 PSI
  • Weight: 99 Lbs.
  • Warranty: 1 Year
  • Certification: ASME/PASE 2019
  • Special Features: Dual Return Springs|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
  • Designed for heavy duty truck and trailer shop use, rail and bus work and roadside service calls.
  • Includes 3 heat treated extensions (3/4”, 2-3/4”, and 4”) for a wide range of lifting options.
  • Two Piece handle Included.
  • High-speed air motor design advances ram to load faster, for quick and more efficient operation. Operates at 90-180 PSI.
  • Narrow Chassis design fits easily between tandem wheels. Large, 8” diameter rubber wheels for easy maneuverability.
  • Fully welded hydraulic pump and cylinder construction provide superior strength and leak prevention. Pump, ram, and cylinders are precision machined and inspected to ensure long service life and superior performance.
  • Chrome plated ram offers additional rust resistance.
  • Wiper seals protect hydraulic system from contaminates.
  • Overload and bypass safety valves prevent the jack from being used beyond its rated capacity and ram over extension.

  • AFF 565F 22-ton axle jack features air assist operation and a self-retracting spring return. Its heavy- duty design is ideal for truck and trailer shops, rail and bus work, roadside service calls, and much more.

Full Specifications
Weight 93.000000
Brand American Forge & Foundry
UPC 874015007381
