Features and Benefits:

• Color: Hi-Vis Green/Black
• Product Type: Body Repair Kit
• Ram Capacity (Tons): 4
• Ram Stroke (Inch): 4.75”
• Ram Effective Area (Square Inch): 1.09
• Ram Oil Capacity (ml): 85
• Ram Collapsed Height (Closed) Inch: 10.5
• Ram Extended Height (Inch): 15.24
• Ram Outside Diameter of the Unit (Inch): 1.535
• Ram Diameter (Inch): 0.98
• Ram Saddle Diameter (Inch): 0.86
• Ram Optimal Pressure: 8,043 PSI
• Ram Weight (Lbs.): 3.97
• Hydraulic Spreader Capacity: � Ton
• Hydraulic Spreader Length: 9.52”
• Hydraulic Spreader Width: 2.28”
• Hydraulic Spreader Stroke: 3.62”
• Hydraulic Spreader Weight: 3.75 Lbs.
• Hand Pump Rated Pressure (PSI): 8,000
• Hand Pump Output per Stroke (Ram Cylinder Extended Length Per Stroke) (Inch): 0.157
• Hand Pump Oil Capacity (ml): 380
• Hand Pump Optimal Force (Lbs.): 179.85-184.30
• Hand Pump Piston Stroke (Inch): 0.98
• Hand Pump Oil Output Thread: �” NPTF
• Hand Pump Weight (Lbs.): 11.46
• Kit Extension Lengths: 3”, 5”, 8.5”, 16.5”, 20”
• Hose: �”, 5�, Double Braided
• Warranty: 1 Year
• Contains all the tools necessary for pushing, spreading, and pressing of vehicle body panels, parts, frames, and assemblies.
• Snap-lock design for quick and easy assembly.
• Auto air bleed pump eliminates the need to bleed system prior to use. Automatic pump overload system protects against damage to rams and equipment.
• Heavy walled extensions stand up to the toughest of working applications that are interchangeable with other body and frame kits.
• Chrome plated pump core and piston rod for increased durability and long life.
• Long handle provides a very low pumping effort.
• Double braided hydraulic hose provides protection against abrasion and heavy wear.
• 1/2-ton capacity hydraulic spreader features 2" jaws and spreads from 5/8" to 3-3/4".
• Includes blow molded case for easy transport and storage.

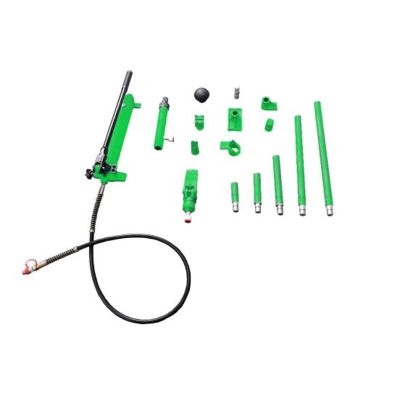

• Kit Includes: Hand Pump, Ram, � Ton Hydraulic Spreader, Plastic Blow Mold Case, 3” Extension Tube, 5” Extension Tube, 8.5” Extension Tube, 16.5” Extension Tube, 20” Extension Tube, Ram Toe, Flat Saddle, Wedge Head, V Base, Male Connector, Rubber Saddle, Base, Ram and Hose Coupler Set.


Offering a wide assortment of Hydraulic Rams for use in high force applications including lifting, pulling, pushing, bending and alignment. Choose from complete kits or individual styles.
