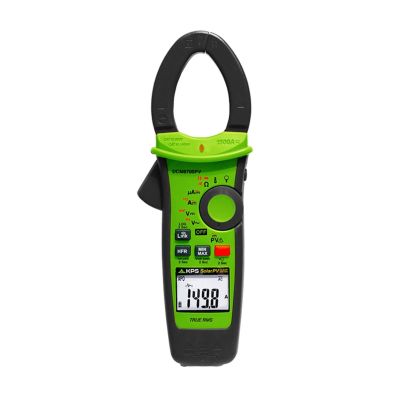

The DCM8700PV is a powerful instrument designed for precision electrical measurements, capable of measuring DC voltage up to 2000V, AC voltage up to 1500V, and AC/DC current up to 600A. Its Bluetooth connectivity enables seamless data storage in the KPS Link App for efficient record-keeping. With a measurement range as low as 4000uA, it caters to diverse current levels. The device features a True RMS capability and a 6000 count display, ensuring accurate readings even in challenging conditions. In addition to measuring capacitance, frequency, inrush current, and temperature, the meter incorporates high-frequency rejection, non-contact voltage detection, and a low impedance mode function for enhanced versatility. With a built-in work light to illuminate dark work environments and a safety profile comprising CAT IV 600V and CAT III 1000V ratings according to EN61010, the DCM8700PV is a reliable choice for professionals in the electrical field.

Features and Benefits:

• Engineered for Solar and Industrial Use: Measures up to 2000V DC / 1500V AC and 1500A AC/DC ideal for PV systems and high-power applications.
• Multifunctional Testing: Includes TRMS, resistance, frequency, capacitance, diode, continuity, temperature, inrush current, and NCV.
• Datalogging and Wireless: Stores up to 4000 records with wireless connectivity via the KPS Link app.
• Safety-Rated and Rugged: CAT IV 600V / CAT III 1000V with 42mm jaw opening and torch for visibility in tight spaces.
• Flexible Current Capability: Optional current probe enables measurements up to 3000A AC.
