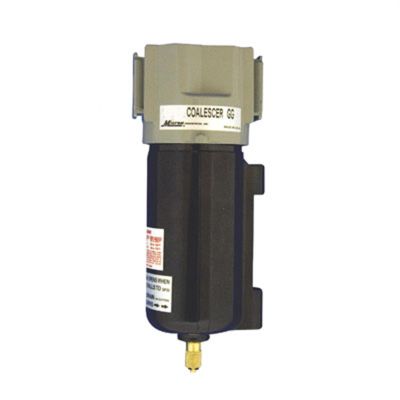

Milton Industries 1/2 Coalescing Filter Metal Bowl
Item ID:
MIL1037
Milton Industries 1/2 Coalescing Filter Metal Bowl
Features and Benefits:
- Maximum pressure of 250 pounds per square inch
- Maximum of 37 standard cubic feet per minute at 100 pounds per square inch
- Operating temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit
- .03 sub micron = 99.97 efficiency
This 1/2" NPT heavy duty coalescing filter with metal bowl is designed for applications that require air free of oil and all foreign particles. This 6 ounce capacity metal bowl includes a convenient automatic overnight drain which will activate whenever liquid has accumulated in the bowl or when the air supply is shut down. With a maximum pressure of 250 PSI, this coalescing filter offers up to 37 SCFM. The .03 micron filtration and low pressure drop make this filter ideal for body shop, spray painting, food processing and instrumentation.
| UPC | 030937311610 |
|---|---|
| Weight | 1.850000 |
| Brand | Milton Industries |
| Style | System |
| Air Inlet Size | 1/2" NPT |
| Drain Type | Automatic |
| Filter body Material | Bronze |
| Gauge Included | No Guage |
| Maximum Operating Temeprature | 40*- 200* |
| Maximum Pressure in PSI | 250psi |
| Number Of Outlets | 1 Outlet |
| Air Outlet Size | 1/2" NPT |
| Bowl Capacity | 6.0 oz |
| Bowl Material | Metal |
| Filtration micron size | .03sub-micron=99.97effi |
| Number Of Stages | Single Stage |
| Flow in CFM | 37 SCFM |
| Item | Air Filter |
Warranty Info:
1 yr warranty on material and workmanship
