Regulator 3/8" NPT, 10-250 PSI
Item ID:
MIL1114-8
Regulator 3/8" NPT, 10-250 PSI
Features and Benefits:
- Maximum inlet pressure of 250 PSI
- Regulated pressure range of 10-250 PSI
- Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit

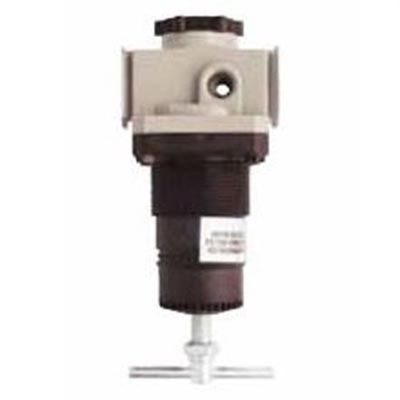

Milton's 3/8" NPT High Pressure Regulator offers a stable downstream air pressure over a wide range of air flows with accurate control, fast response time and minimal pressure drop. Offset gauge ports can also serve as two 1/4" supply lines. The aluminum die cast body comes with a balanced piston and molded rubber seat. As a high pressure regulator, the 3/8" NPT High Pressure has a maximum inlet pressure of 250 PSI and a regulated pressure range of 10-250 PSI.
UPC | 030937111487 |
---|---|
Weight | 0.500000 |
Brand | Milton Industries |
Guage | No Guage |
Inlet Size | 3/8"NPT |
Outlet Size | 3/8"NPT |
Number Of Outlets | 1 |
Maximum Operating Pressure | 80 SCFM |
Wire Size | Inline |
Material Upper | Metal |
Item | Regulator |
Warranty Info:
1 yr warranty on material and workmanship
