Features and Benefits:

• Push button air/hydraulic pump provides safe, quick lifting up to 9” which allows for a maximum lift height of 18-3/8" when using both adapters and extension screw extended
• The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 63”
• Universal mounting brackets adjust to a lift rail range of 32" to 46-1/2”
• Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings forsmooth maneuverability of bridge on lift rails. These brackets are sold separately
• Mechanical stop prevents accidental lowering of bridge
• Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop
• Equipped with rubber faced saddle for differential lifting
• Included lift adapters: (2) 3-1/2” Adapters, (2) 5” Adapters, and (2) Padded Saddles w/ Extension Screws
• Available mounting adapters:79326D: Flat-End Adapter Bracket Kit79327D: Hook-End Adapter Bracket KitOverall width from outside edge of lift pad:- Arms retracted: 39-7/8”- Arms extended: 63”

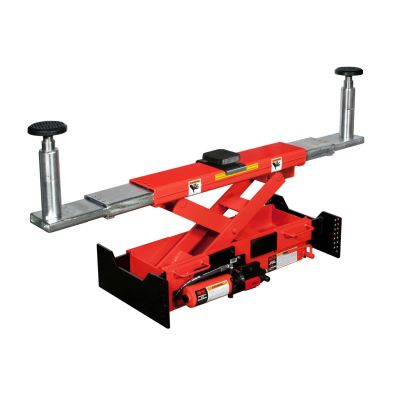

Used in quick lube pit applications or in conjunction with above ground lifts. The bridge straddles the lift rails and raises the vehicle�s tires off the rails for wheel alignment, brake, tire and suspension work
