Features and Benefits:

• Foot pedals control the air/hydraulic operation, which lifts the head quickly to the work location
• A hand pump secondary hydraulic stage allows for precise operator control
• Universal saddle and adjustable corner brackets and safety chains for optimum positioning of the load
• Hydraulic system features flash-chromed rams to prevent rust from entering system, prolonging jack life
• Ideal size and capacity for removal and installation of automotive transmission
• Capacity 1,000 lbs
• Air pressure 145 PSI
• Minimum Height 41.5"
• Maximum Height 80"
• Forward Tilt (max) 12", Backward Tilt (Max) 12"
• Side Tilt (Max, side/side) 7"
• Leg Width 40" x 43"

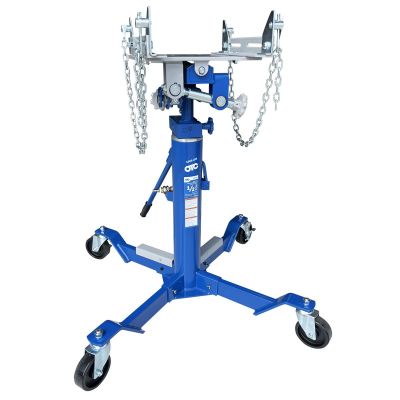

A two-stage air/hydraulic high-lift transmission jack with universal saddle, adjustable corner brackets and safety chains for optimum positioning of the load. Foot pedals control the air operation, which lifts the head quickly. Ahand pump secondary hydraulic stage allows for precise operator control. Lowering is controlled by a release knob.Ideal size and capacity for the removal and installation of automobile transmissions. Meets all ASME PASE-2019 safety standards. The head tilts front to back and side to side to make removal and installation of transmission and driveline components easier. Big, easy-to-grip knobs make mounting head adjustments simple, and the included safety chains securely hold components during removal, transport and installation. Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life. Specially designed with a wide leg base and oversize 5" polyurethane swivel wheels for smooth maneuvering over rough surfaces and small debris, while providing stability and easy placement during jobs. A built-in safety overload system prevents the jack from being used beyond its rated capacity and two locking casters help keep the jack in position during use.
