Features and Benefits:

• Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more
• Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
• Chrome plated ram for additional rust resistance
• Wiper seals protect hydraulic system from contaminants
• 4-position handle makes it easy to position under vehicles with low overhangs
• Wide rugged base adds stability and strength
• Large rear wheels provide easy positioning and portability
• Dependable Venturi vacuum power return system feature lowers piston ram quickly with no load
• Multi-lingual OTC Owners Manual for service jacks with training (operating) instruction
• Made in the USA
• Lifetime Warranty

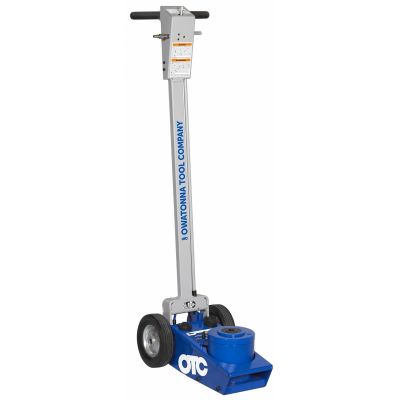

Versatile, easy-to-use heavy duty under-axle hydraulic jack that is compact, can fit under many types of vehicles, and handle a wide assortment of vehicles. The self-retracting, Venturi vacuum power return system feature with long 48-3/4" T-handle lets you easily position jack under vehicles with long overhangs. One pull of the handle activates the self-retracting 27.5-ton capacity ram without having to crawl underneath the vehicle. Large rubber-tired steel wheels for maneuverability and movement on most types of terrain. Two saddle attachments included for multiple height adjustments based on vehicle being lifted. The 4-position handle includes a stow-away position for easy storage and near-vertical handle position. A pneumatic release valve offers more precise release control without requiring a separate valve operation step. The jack's completely sealed piston protects it from dirt, dust, sand or other damaging outside elements. 4.9375" Cylinder stroke, 4-1/2"; 4-1/4" extended screw length.Ideal size for safely lifting heavy duty vehicles. Specifications:27.5-ton capacityAir pressure: 90 - 175 PSILifting range: 8-1/4" to 21-3/8" using longest saddleReach: 69.87"Saddle: 3" dia., round with center notch. Includes 2 saddle adaptersMax height using saddle only: 13-1/8"Max height using large adapter: 21-3/8"Frame height: 8.27"Handle length: 48-3/4" T handle with lowering lever and air-chuck hookFootprint: 22" x 12"Wheels: 2 fixed; 7.88" rubberized steel Meets all 5 ASME PASE-2019 safety standards for service jacksLimited Lifetime Warranty
