Features and Benefits:

• 6/12 Volt Charging and Maintaining
• 3 channels ‐ 12V output
• 1 channel ‐ 6/12V output
• 4 x 5A output
• 4 independent channels
• Fully automatic, multi
• phase process
• Enhanced maintenance mode
• Charges multiple lead acid battery types
• Temperature compensation
• Small footprint and mountable design
• Includes (4) clamp output leads
• 10 ft ext cord (PLA62) and accessories available
• 1 Year Limited Warranty
• Operating Voltage : 6/12V
• Operational Mode : Automatic
• Charging Rate : 2A x 4 Channels
• Charging Phases : 7
• Enhanced Maintenance Mode : Yes
• Reverse Polarity Protection : Yes
• Battery Fault Detection : Yes
• Battery Recondition Mode : Yes
• Soft Start Mode : Yes
• Temperature Compensation : Yes
• Output Options : Clamp, Ring (optional)
• Output Cable Length (each Channel) : 72"
• Output Cable Gauge : 18 AWG
• Weight : 8.4 lbs.
• Warranty : 1 Year Limited
• UPC : 010271026524

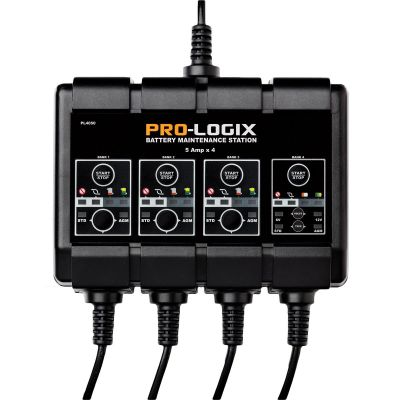

Model PL4050 is a perfect charger to meet the needs of mechanical repair shops, collision repair facilities, fleet operations, marinas and consumers. It features four independent output channels designed to properly charge a flooded or AGM (including Sprial Wound) battery. Because each output is independent of the others, a troublesome battery on one channel does not create problems for the other channels. The unit features three channels with 12V output and one channel with 6/12V output.It combines fully automatic operation with the ability to properly charge multiple battery types. Advanced charging logic, robust components, quick set-up and smart display feedback mean effective and efficient charging for your operation.
