Features and Benefits:

• Fluids Handled: Synthetic and mineral based oil,Transmission fluid,Hydraulic oil,Gear lube
• Markets Served: Fast Lube centers, Fleet service, In-Plant, Vehicle maintenance centers
• Pump Pressure Ratio - 5:1
• Continuous Duty Flow Rate - 2.7 gpm (10 l/min)
• Maximum Free Flow Rat - 6.6 gpm (25 l/min)
• Air Pressure Operating Range - 20-140 psi (1.5-10 bar)
• Maximum Outlet Pressure - 700 psi (50 bar)
• Air Motor Effective Diameter - 2 1/2" (60 mm)
• Air Motor Stroke - 4" (100 mm)
• Air Consumption - 14 scfm (400 NL/min)
• Air Inlet - 3/8” NPT(F)
• Fluid Inlet - 1” NPT(F)
• Fluid Outlet - 3/4” NPT(F)
• Wetted Materials - Aluminum / Steel / Polyurethane / NBR / PTFE
• Noise Level - 80 dB
• Application - Stub pump, 16 Gallon drum pump, 55 Gallon drum, 257/500 tank, 60" tank
• Simultaneous Dispense Points - 1-2

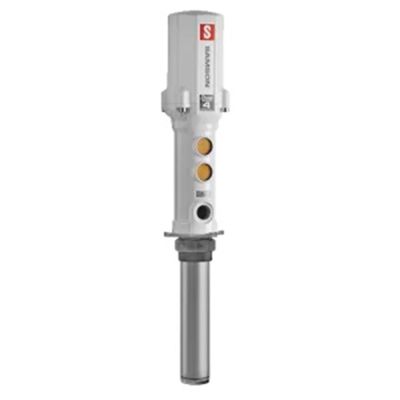

• Max. Line Length - 500' (150 m)Pump Description - Standard Duty Medium Pressure



Double acting air operated medium pressure for dispensing lubricants in medium to large size installations, that include multiple outlets with simultaneous operations. Pumps include height 2" NPTM adjustable bung adaptor for drum and tank bung mounting. Built in port for optional 609 007 pressure relief valve.
