Features and Benefits:

• Fluids Handled: Water, Air
• Markets Served: Car and Truck Dealerships, Mass Transit Maintenance, Railroad, Service Shops, Fleet service, Lube Trucks, Mining equipment maintenance, General Manufacturing
• Very tough construction able to stand regular use and abuse in Intensive Duty applications.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Hose guide arm can be placed in different positions to accommodate any method of mounting.
• Narrow footprint allows mounting more reels on the same surface.
• Hose reels with hose include 30" inlet hose.
• Hose Length: 50'
• Hose ID: 3/8", 1/2"
• Outlet Thread: 3/8" NPT(M), 1/2" NPT(M)
• Max. Working Pressure: 300 psi
• Hose Length: 50'
• Hose ID: 3/8", 1/2"
• Outlet Thread: 3/8" NPT(M), 1/2" NPT(M)
• Max. Working Pressure: 300 psi

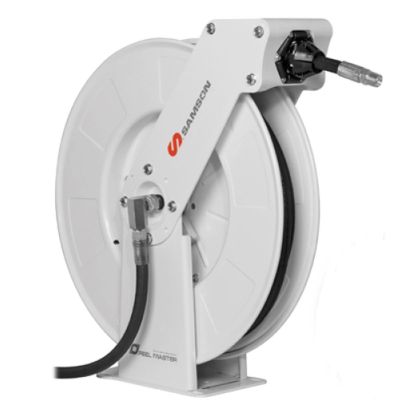

Full metal heavy duty double pedestal hose reels, can handle up to 50' x 1/2" hose.
