Features and Benefits:

• Fluids Handled: Windshield Wash Solution, Synthetic and Mineral Oils, Antifreeze solutions
• Markets Served: Service Shops, Fleet service, Lube Trucks, Car and truck dealers, General Manufacturing, Quick Lubes
• Aluminum base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large guide latching area for easier operation.
• Six roller guide outlet prevents hose pinching and reduces friction.
• Hose guide arm can be placed in different positions to accommodate any method of mounting.
• Hose reels with hose include 30" inlet hose.
• Hose Length: 30', 50'
• Hose ID: 1/2"
• Outlet Thread: 1/2" NPT(M)
• Max. Working Pressure: 2,000 psi
• Hose Length: 30', 50'
• Hose ID: 1/2"
• Outlet Thread: 1/2" NPT(M)
• Max. Working Pressure: 2,000 psi

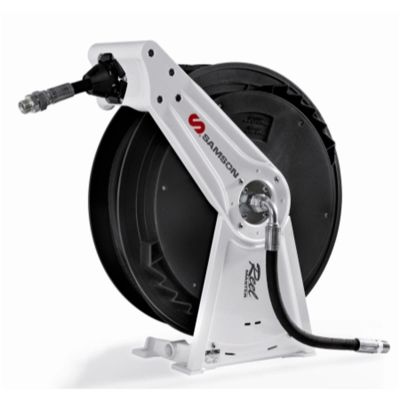

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50' x 1/2" hose.
