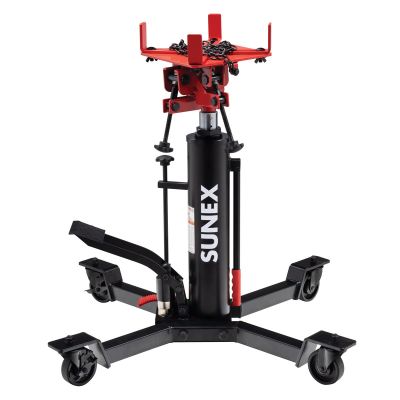

1000LB TELESCOPING TRANS JACK

Item ID:SUN7793B
Special Price

1000LB TELESCOPING TRANS JACK

Item ID:
SUN7793B
As low as
1000LB TELESCOPING TRANS JACK

Features and Benefits:

  • Use for removal, installation and transporting of transmissions and transfer cases on vehicles that are supported by lifts
  • Foot activated pump pedal for hands free raising of the rams
  • Lowered telescopic rams enable the transmission to be transferred from the jack to the work table and extended to reach a maximum height of 74
  • Foot activated release pedal provides slow controlled lowering of load
  • Universal saddle with angle brackets that can be adjusted to the transmission pan configuration
  • Chain tie down secures the load to the saddle
  • Overload valve prevents jack from being used beyond its rated capacity

Low height: 35.5"; high height: 79.5"; saddle tilt forward: 53 degrees; saddle tilt backward: 30 degrees; saddle tilt side to side: 10-30 degrees; base size: 35" x 31.25"; shipping weight: 167 lbs.

Full Specifications
Weight 175.000000
Brand Sunex
Power Type Hydraulic
Lifting Capacity 1000 lbs
Maximum Raised Height 79.5"
Minimum Closed Height 35.5"
Number stage Dual Stage
Wheel Type Front Swivel
Wheel Type Rear Swivel
Wheel Size Front 3"
Wheel Size Rear 3"

Warranty Info:

1 yr warranty on material and workmanship
