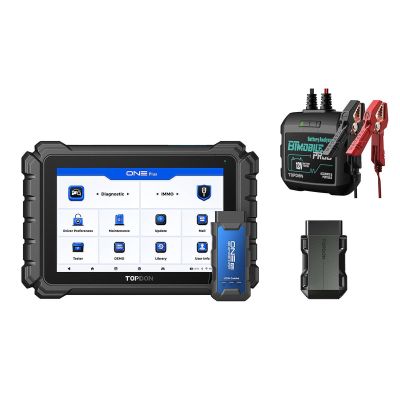

Built for professional repair shops and diagnostic specialists, the TOPDON ONE Plus delivers true OE-level performance. From advanced ECU programming and coding to 50+ essential service functions, it gives technicians the control, speed, and access todays vehicles demand. With gateway support for FCA, Renault, Nissan, and VAG SFD, compatibility for the latest communication protocols, and high-speed WiFi VCI communication, the ONE Plus helps techs tackle common bottlenecks in modern diagnostics. Add intelligent AI-driven repair guidance and one-click customization features, and the result is faster troubleshooting, fewer restrictions, and higher shop productivity.

• Performs full system diagnostics across more than 120 vehicle brands
• Supports ECU coding, module configuration, and component matching for advanced repairs
• Includes over 50 maintenance functions such as oil reset, EPB, BMS, DPF regeneration, and calibrations
• Features intelligent repair guidance with integrated fault data and technical references
• Supports advanced protocols including CAN FD and DoIP for modern vehicles
• Dual Wi Fi communication ensures faster and more stable data transmission than Bluetooth
• 8 core processor delivers fast performance for diagnostics, live data, and coding tasks
• Displays live data with multi parameter viewing for easier analysis and comparison
• Generates clear, shareable diagnostic reports for documentation and workflow efficiency
• Functions as a J2534 pass thru device for OEM programming when used with compatible software
• Supports security gateway access for newer protected vehicle systems with proper credentials

Specifications:

• CPU: 8 Core 2.0 GHz processor
• Storage: 4 GB RAM, 128 GB ROM
• Screen: 10.1 inch LCD with 1280 by 800 resolution
• Battery: 10000 mAh 3.8V
• Charging: PD fast charging supports 5V 3A, 9V 3A, and 12V 2.5A
• Camera: 16 MP with autofocus
• Bluetooth: 5.0 with up to 10 meter or 33 foot range
• Dual WiFi modules support external network connectivity and dedicated pairing with subordinate devices
• Supports 2.4 GHz and 5 GHz bands with 802.11 b g n ac standards
• Buttons and I O: Power button, one USB A host port, one USB C host or device port
• Operating system: Android 12.0 closed system
• Storage temperature: minus 20 degrees Celsius to 70 degrees Celsius, minus 4 degrees Fahrenheit to 158 degrees Fahrenheit
• Operating temperature: minus 10 degrees Celsius to 50 degrees Celsius, 14 degrees Fahrenheit to 122 degrees Fahrenheit
• Product dimensions: 311 by 207 by 39 mm, 12.24 by 8.15 by 1.54 inches
• Packing box size: 507 by 380 by 147 mm, 19.96 by 14.96 by 5.79 inches
• Net weight: 1574 grams, 3.47 pounds
• Languages: Supports 45 languages including English, French, German, Spanish, Portuguese, Russian, Japanese, Korean, Italian, Traditional Chinese, Simplified Chinese, Turkish, Polish, Serbian, and Slovak
